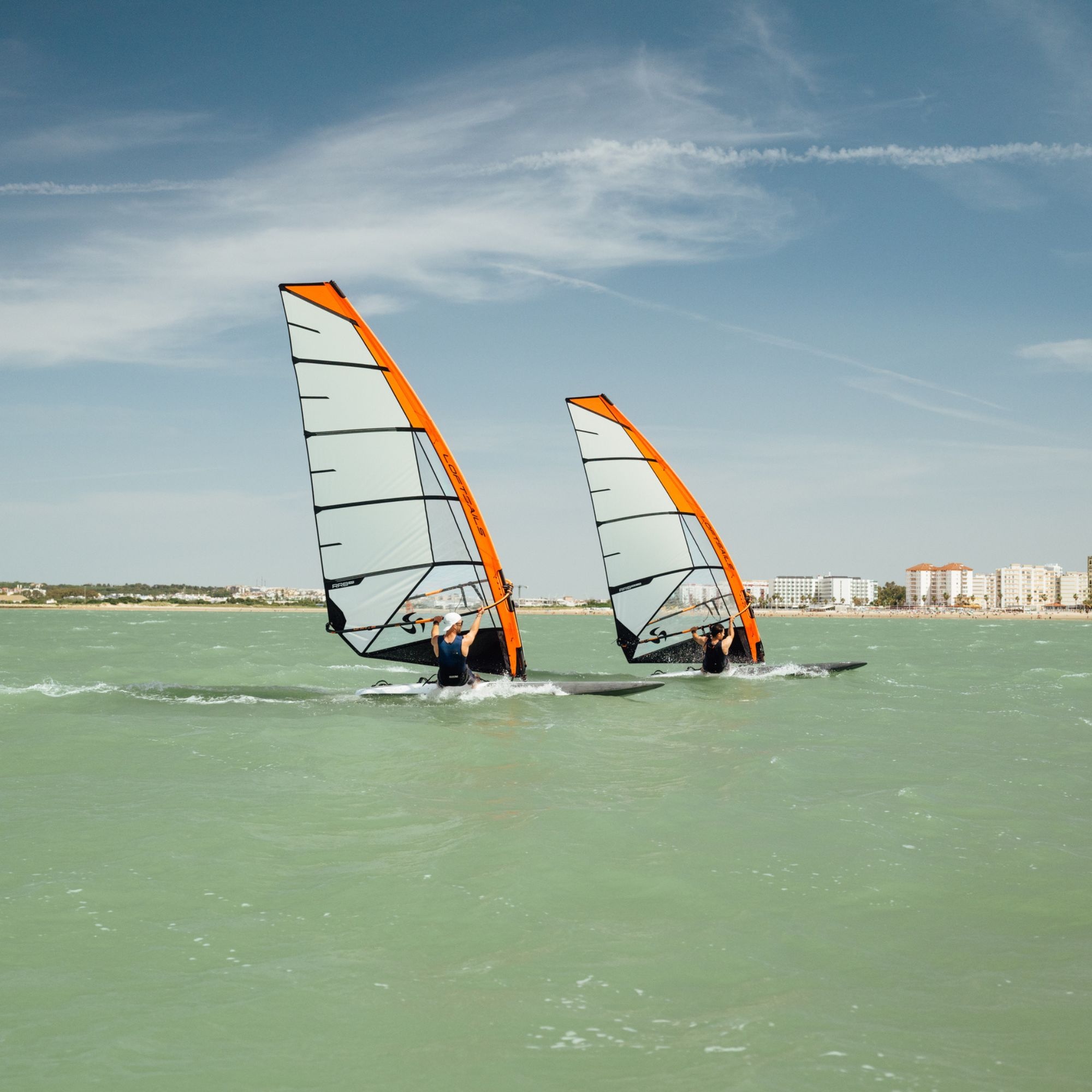

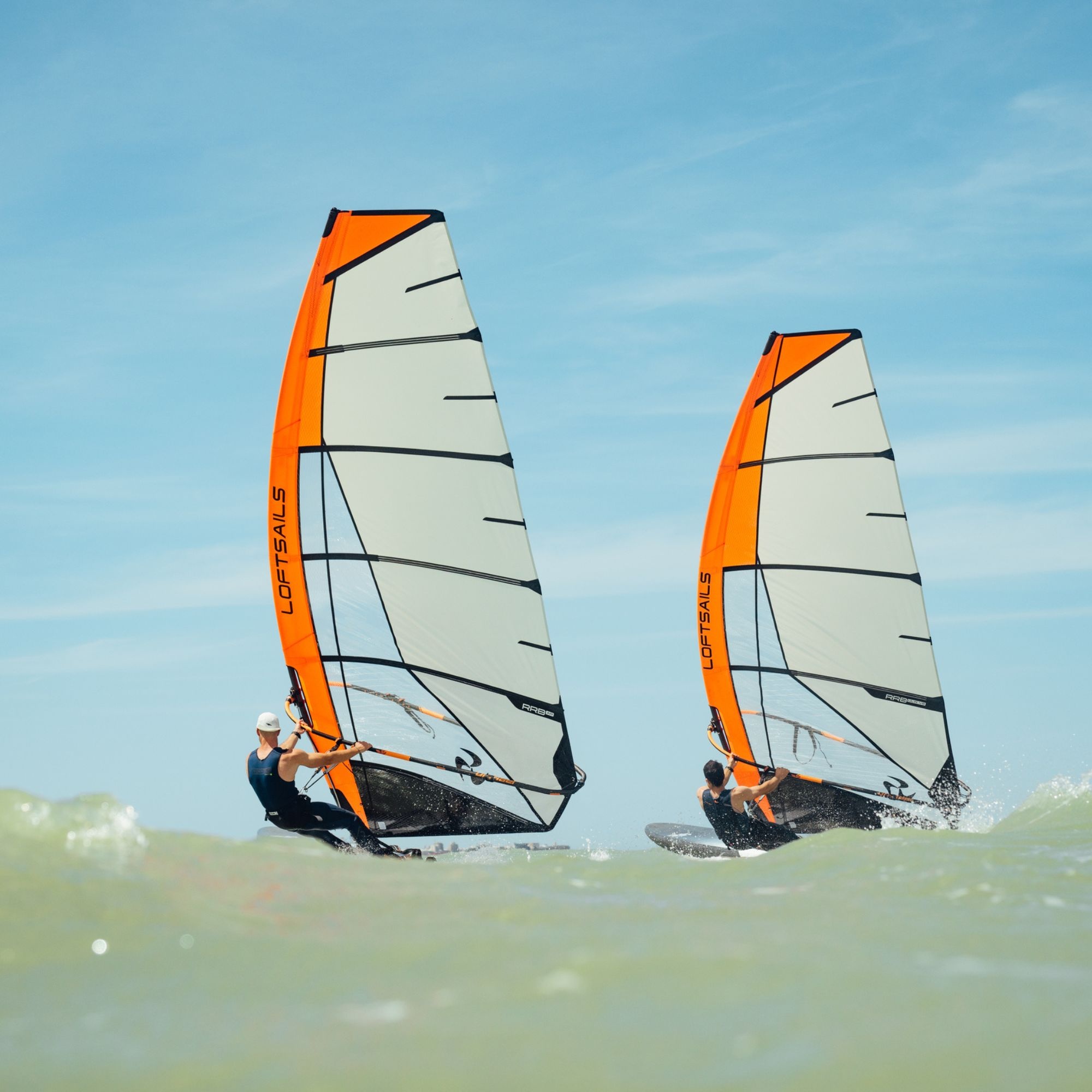

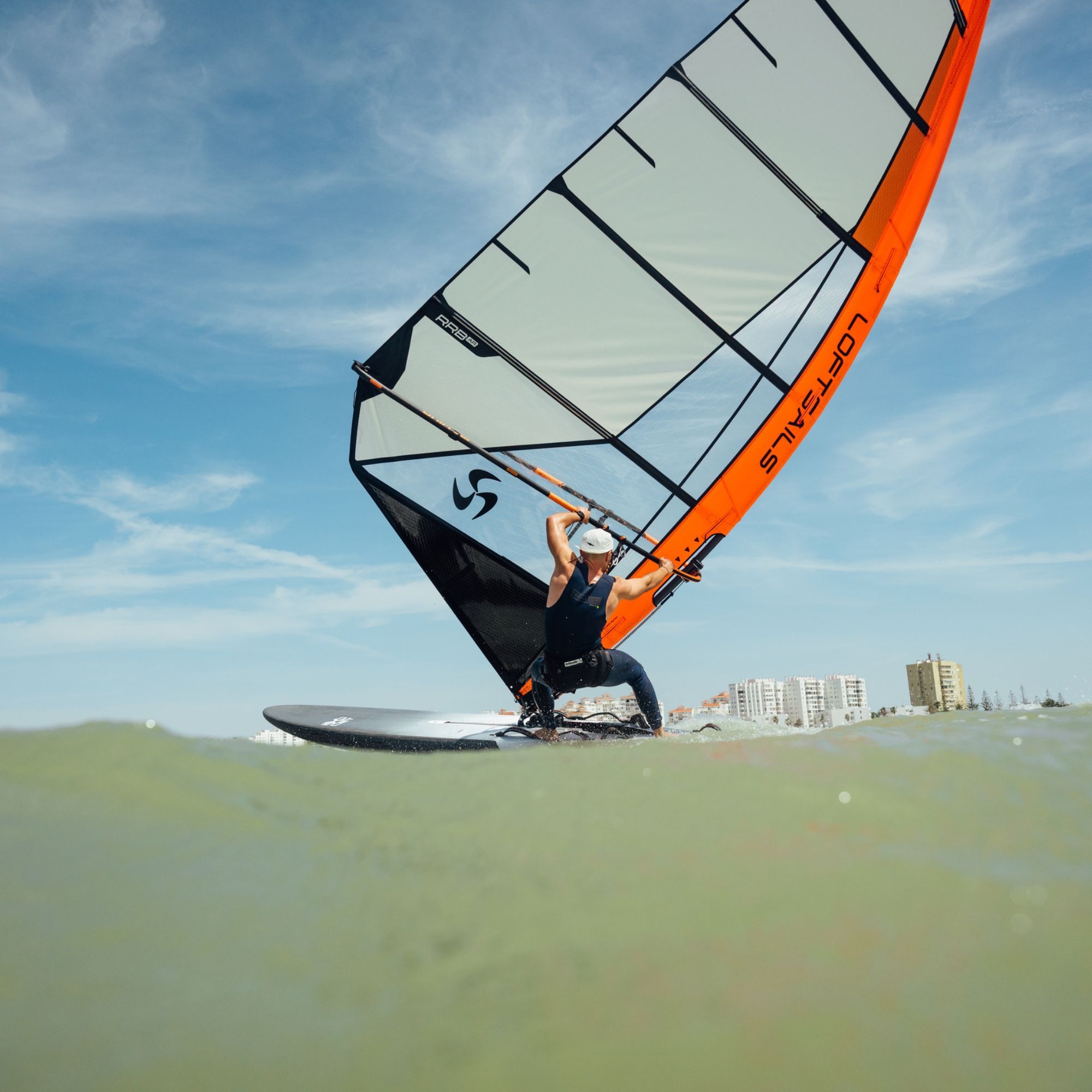

Who is the Loftsails Raceboardblade AR 9.5 for?
Loftsails Raceboardblade AR 9.5 was developed for Raceboard competitors who want one racing sail for a broad wind range. The design combines elements of the Raceboardblade 9.5 and Raceboardblade HW, delivering useful power in lighter wind together with control in stronger conditions.

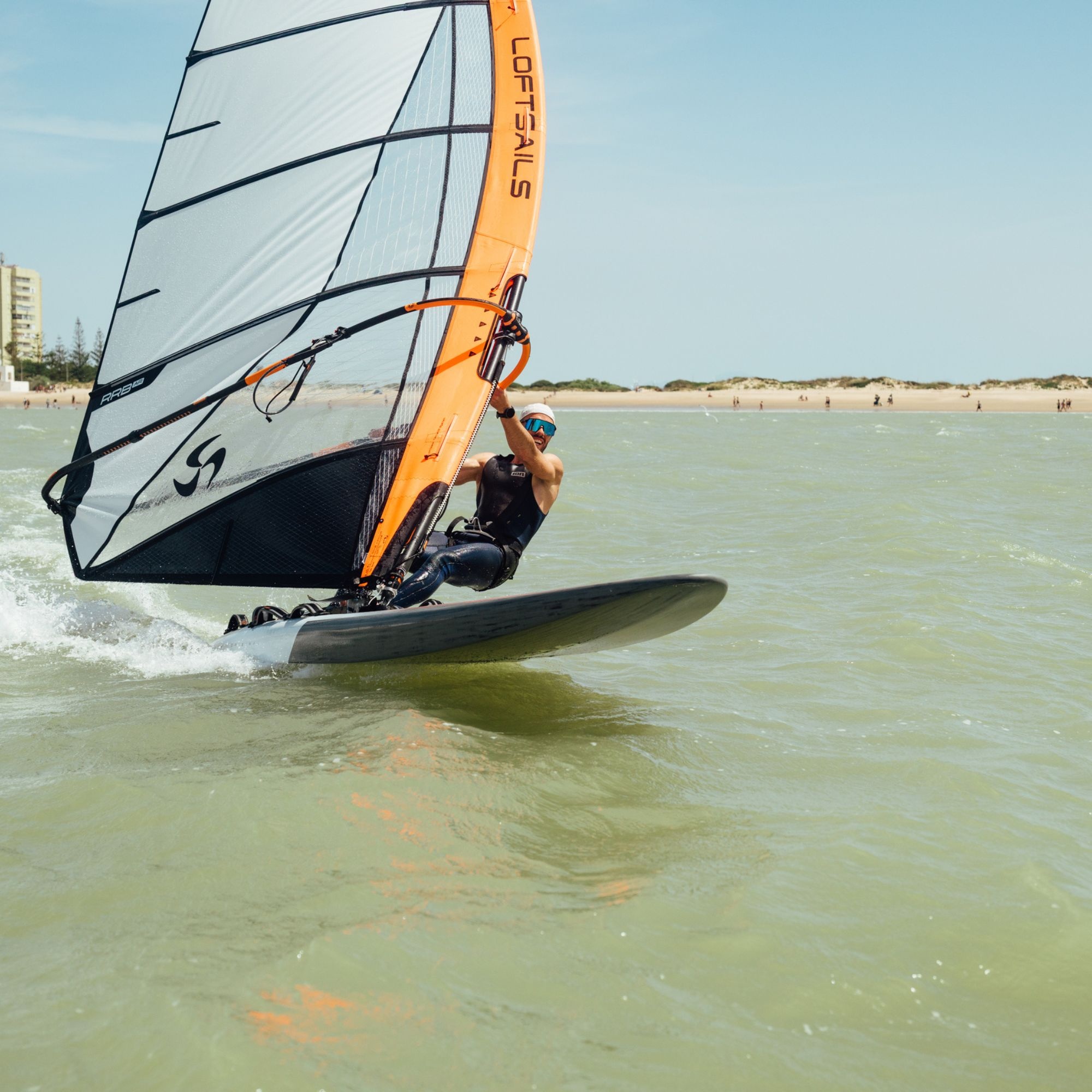

Power in light wind and control as it builds
Six battens and four cams create a firm, stable profile. The sail generates the drive needed to accelerate in lighter wind, while remaining composed and efficient as conditions become stronger.
The Raceboardblade AR responds well to firmer trim. This allows the profile to be flattened, excess power to be reduced and control to be maintained without making the sail feel inactive.

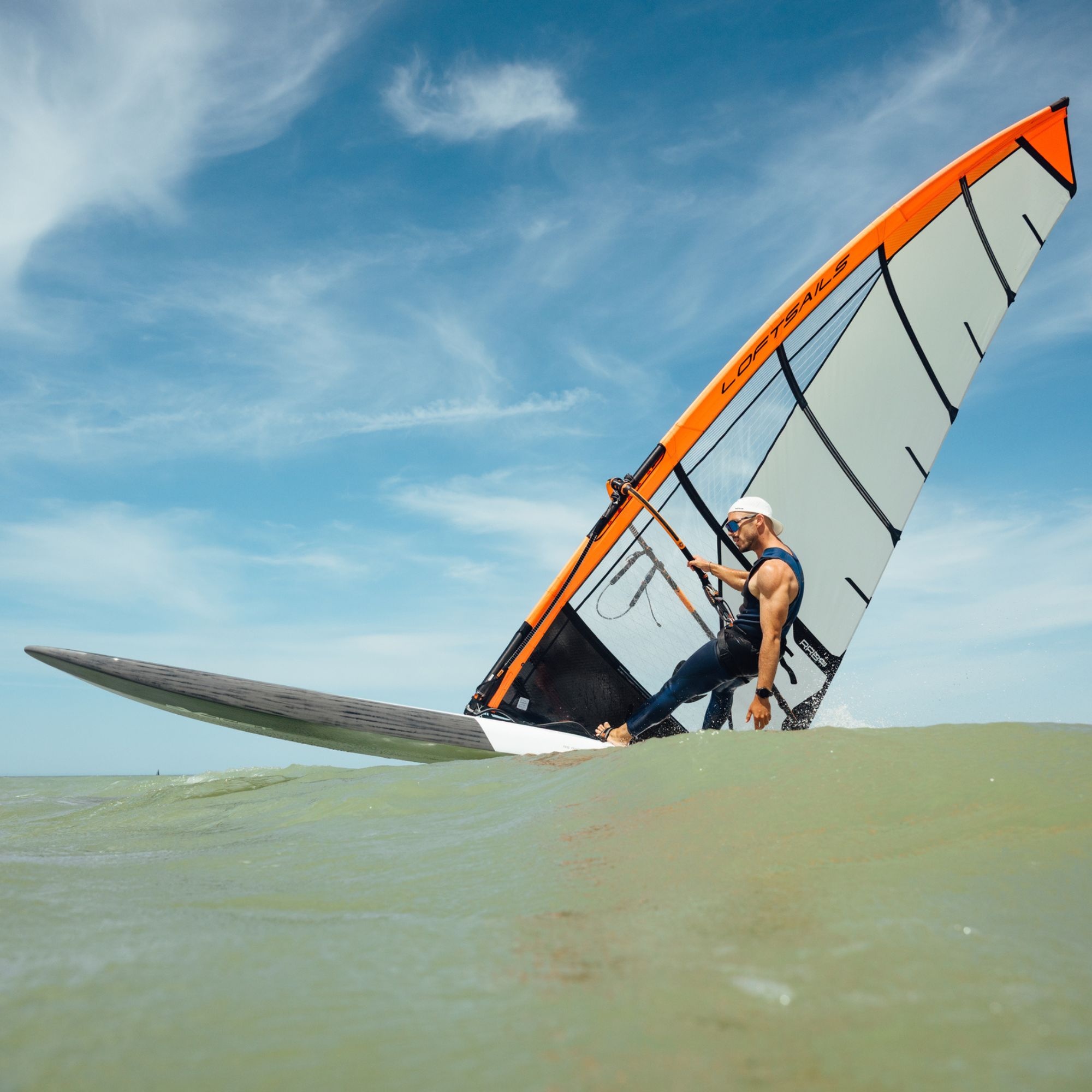

High aspect ratio and easier pumping
The increased mast length and reduced boom length create a higher aspect ratio and a clean, aerodynamic profile. These proportions reduce swing weight, helping the rig remain light and balanced through tacks, gybes and transitions.
Lower inertia also makes pumping easier, helping you use weaker gusts more effectively and rebuild speed after course changes.
Precise adjustment on the racecourse
The Raceboardblade AR is especially responsive to downhaul and outhaul adjustments. Small trim changes allow you to control profile depth, leech tension and power delivery according to the wind strength and point of sail.
This gives you precise control on both upwind and downwind legs.
Lightweight cams and smooth rotation
Four TekCam 3 cambers are 35% lighter than the previous generation. They stabilise the profile and keep it positioned forward without adding unnecessary weight.
Metallic Cam Interfaces reduce wear at the contact points and support smooth, consistent cam rotation through transitions.
Features
Blade Mast Pocket
Downhaul tension is distributed evenly between the mast panel and mast pocket, creating a firm leading edge and supporting smooth, consistent cam rotation
Dacron/SU250PE Mast Sleeve
Lightweight Dacron in the upper mast sleeve reduces weight at the top of the rig, while durable SU250PE reinforces the lower section where downhaul loads and wear are highest

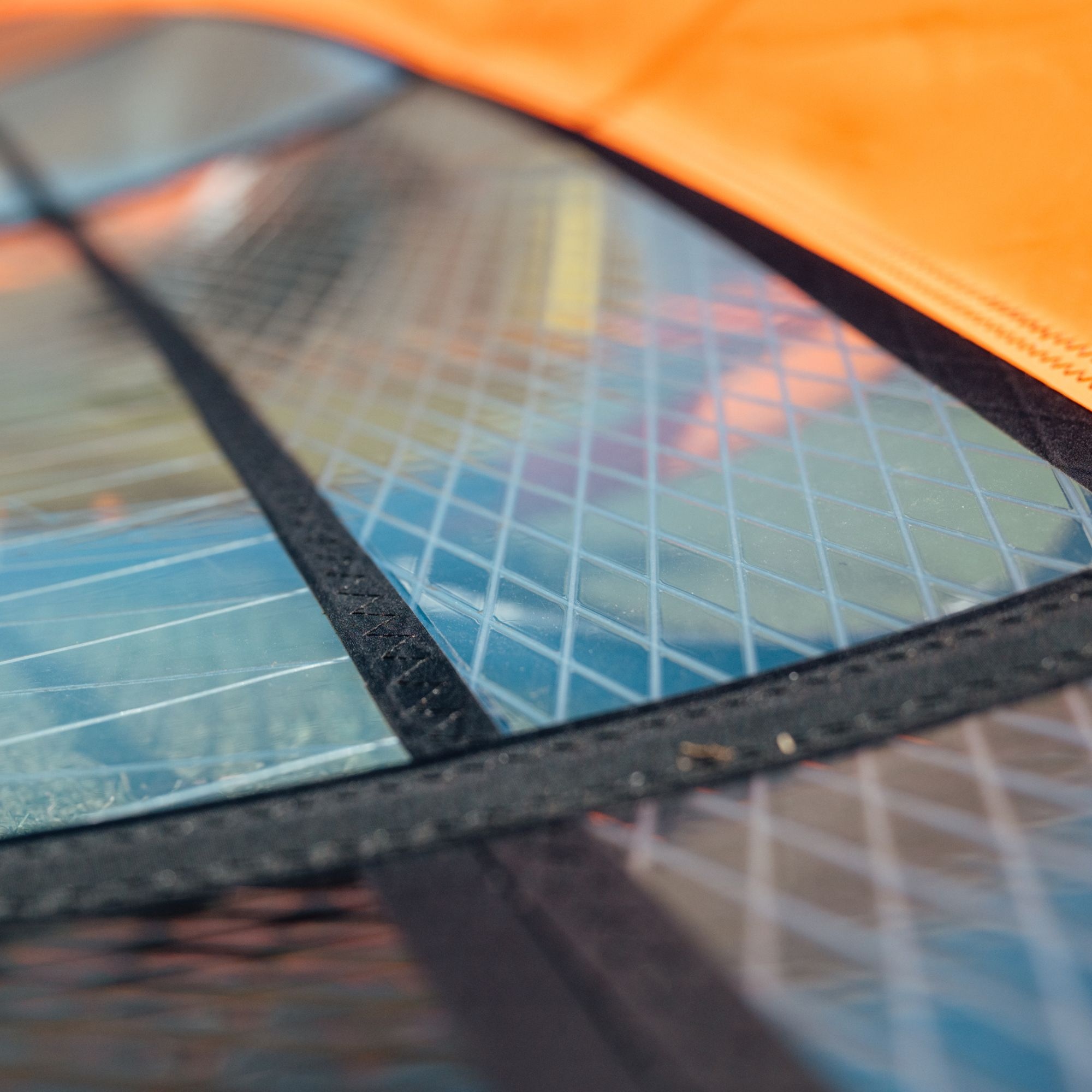

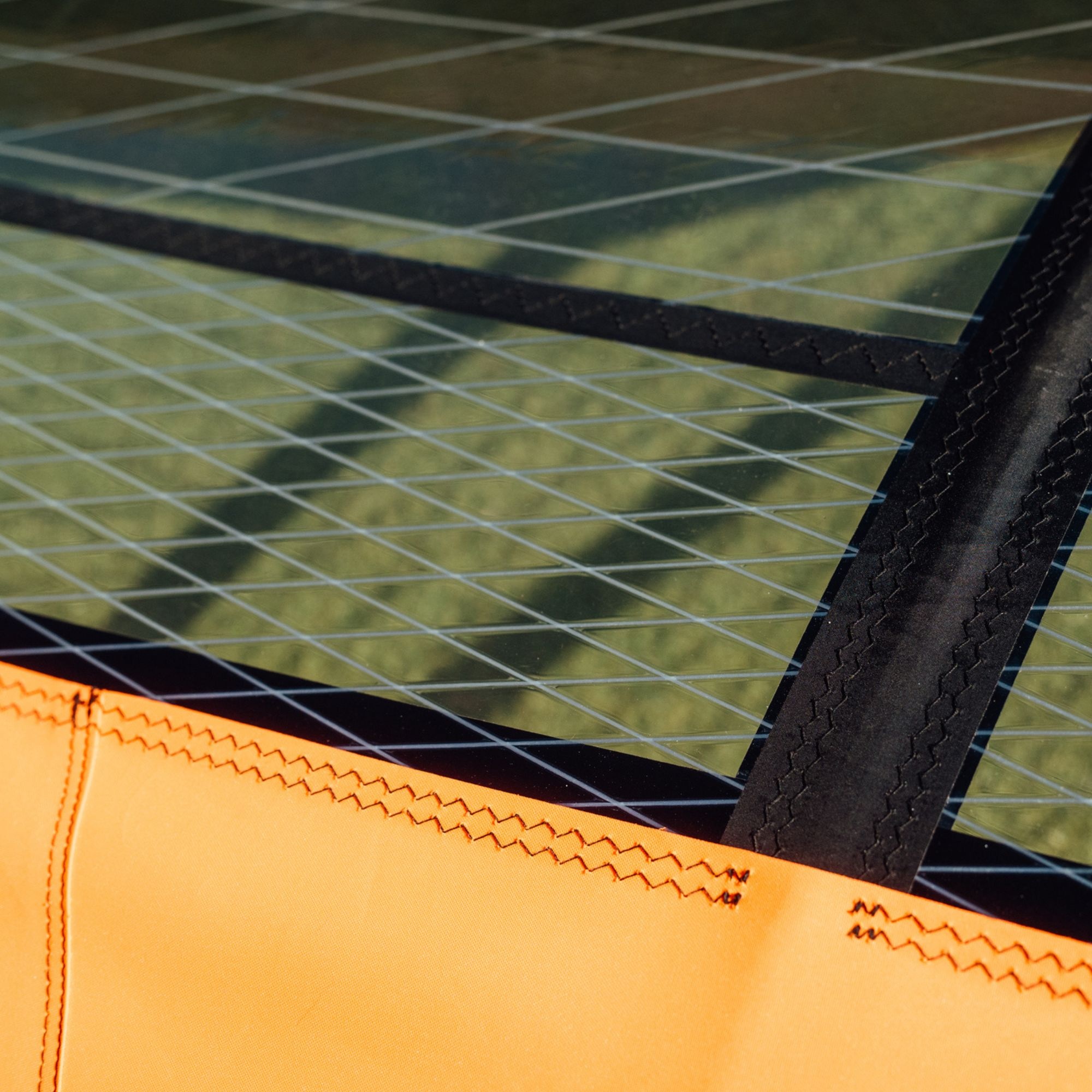

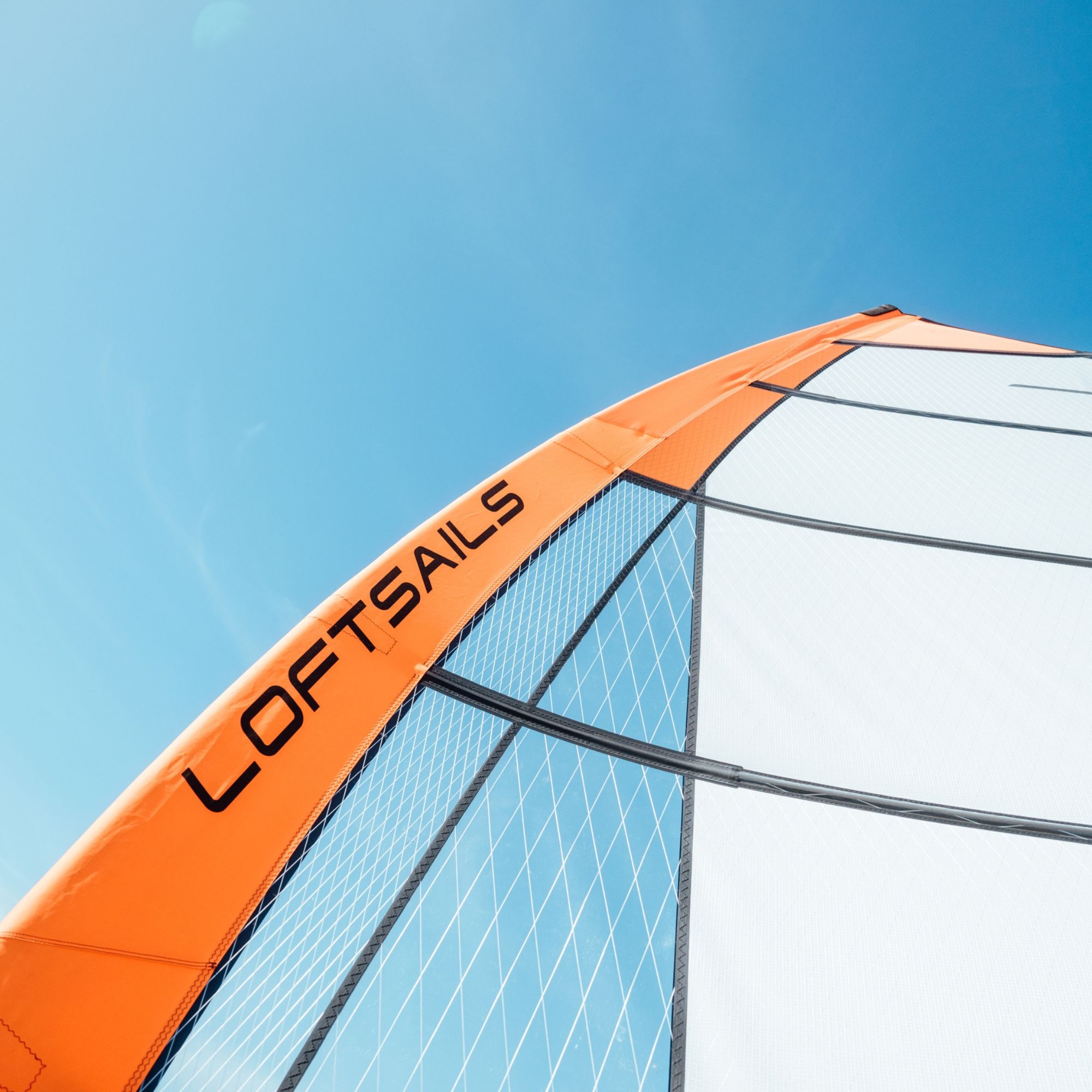

High-Visibility Panels
4 mil X-Ply in the main window and clear panels positioned along the mast pocket provide a clear forward view during starts and while racing around the course

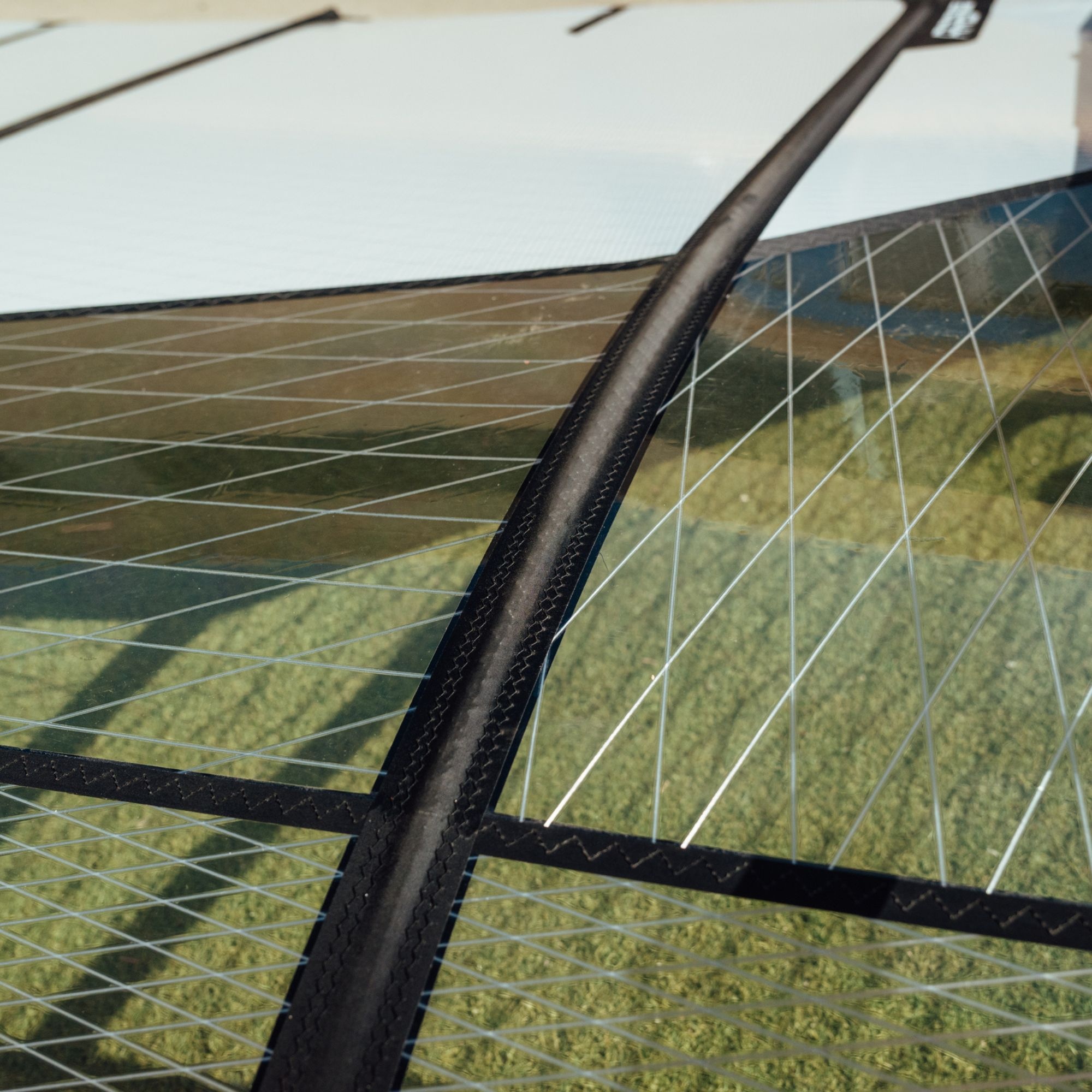

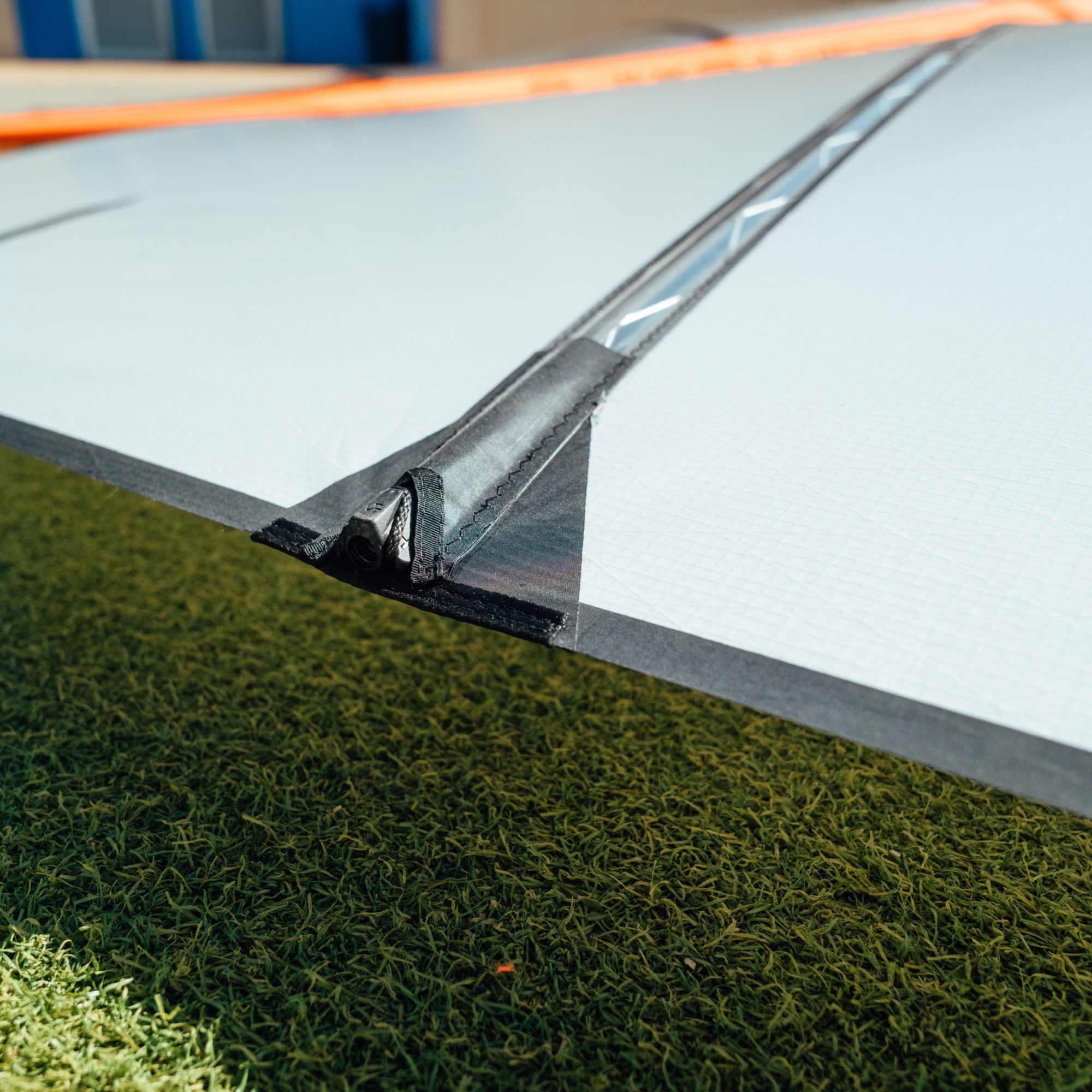

Carbon Batten System
Lightweight carbon tubes stabilise the profile in stronger wind. The combination of longer rod sections and rear-shifted carbon tube segments creates a shallower entry, reduces drag and supports faster cam rotation

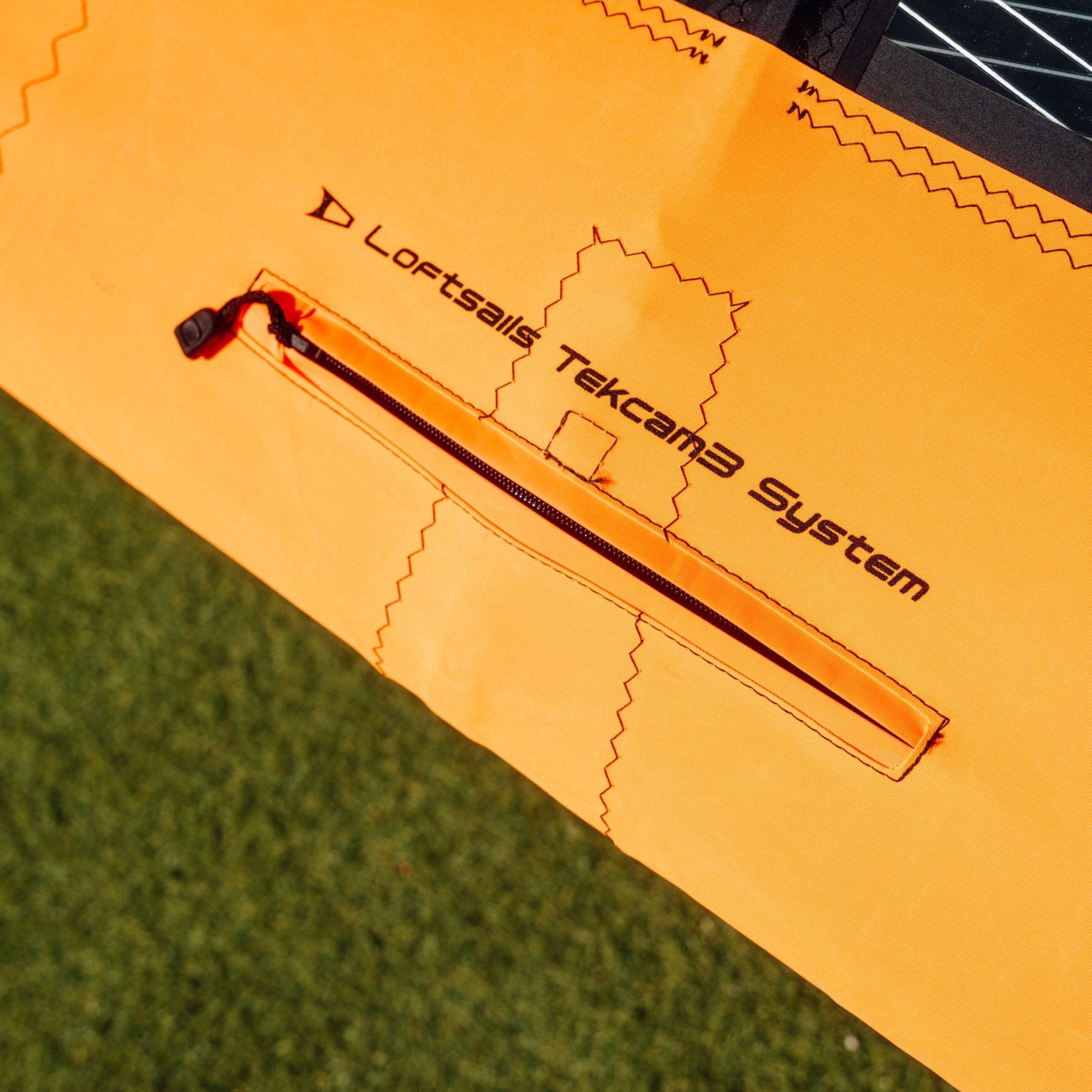

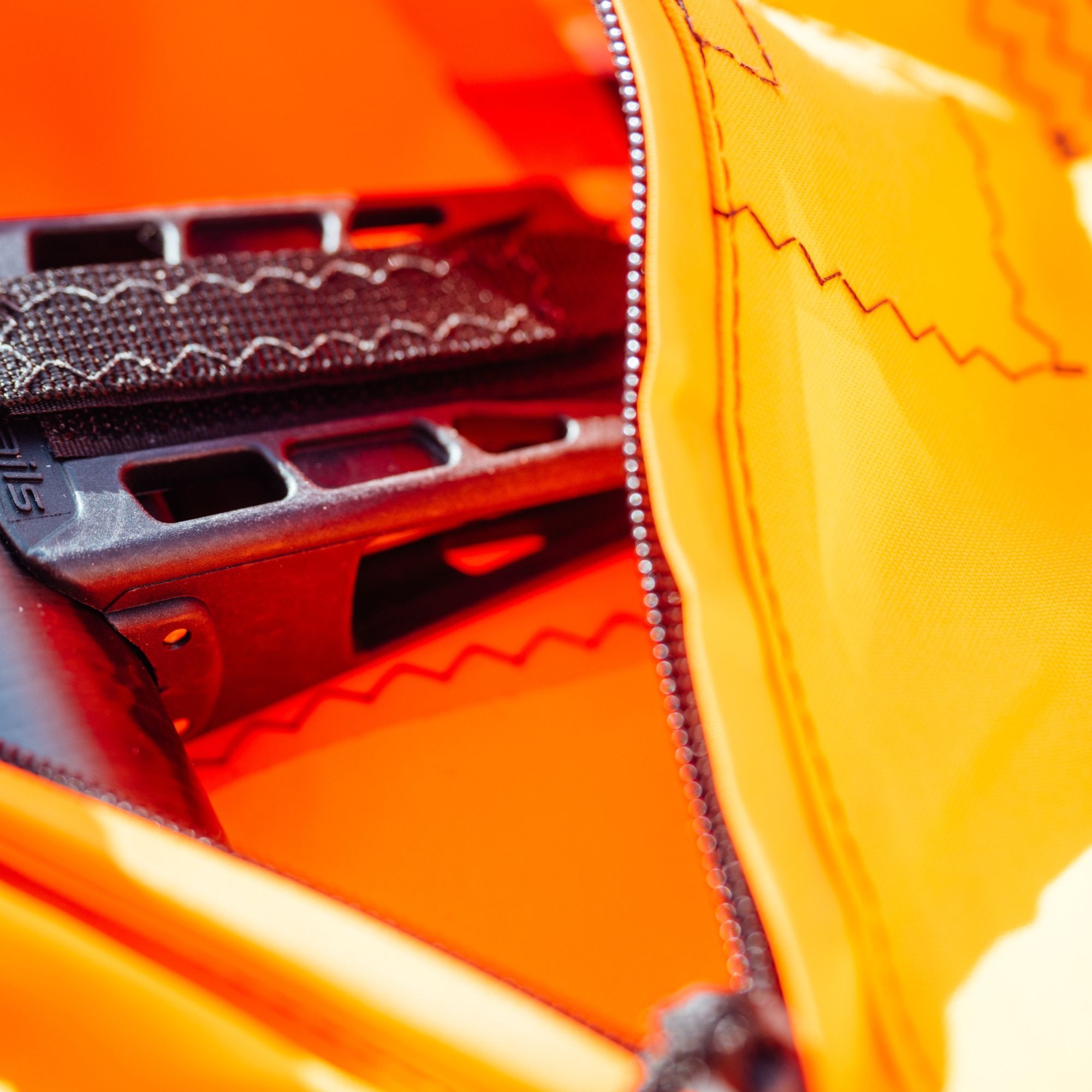

TekCam 3
Four TekCam 3 cambers are 35% lighter than the previous generation. They improve rotation, support higher batten angles and stabilise the upper profile without adding unnecessary weight
Reinforced Panels
Bi-axial X-Ply reinforcements protect the foot, head and clew from the loads created by racing trim. They also protect the area around the longest batten during rolling, transport and storage
Side-Alternating X-Ply Batten Pockets
Batten pockets alternate from one side of the sail to the other, reducing asymmetry caused by seams and helping maintain a balanced profile on both tacks
Exposed Tack
The exposed tack eyelet allows the use of an adjustable downhaul system for precise tuning while racing
Track Strap with Eyelet
Track strap tension remains independent from the downhaul, allowing precise control of the tack area without changing the sail’s main trim
Metallic Cam Interface
Reinforced contact surfaces reduce wear around the cambers and help maintain smooth cam function over extended use
