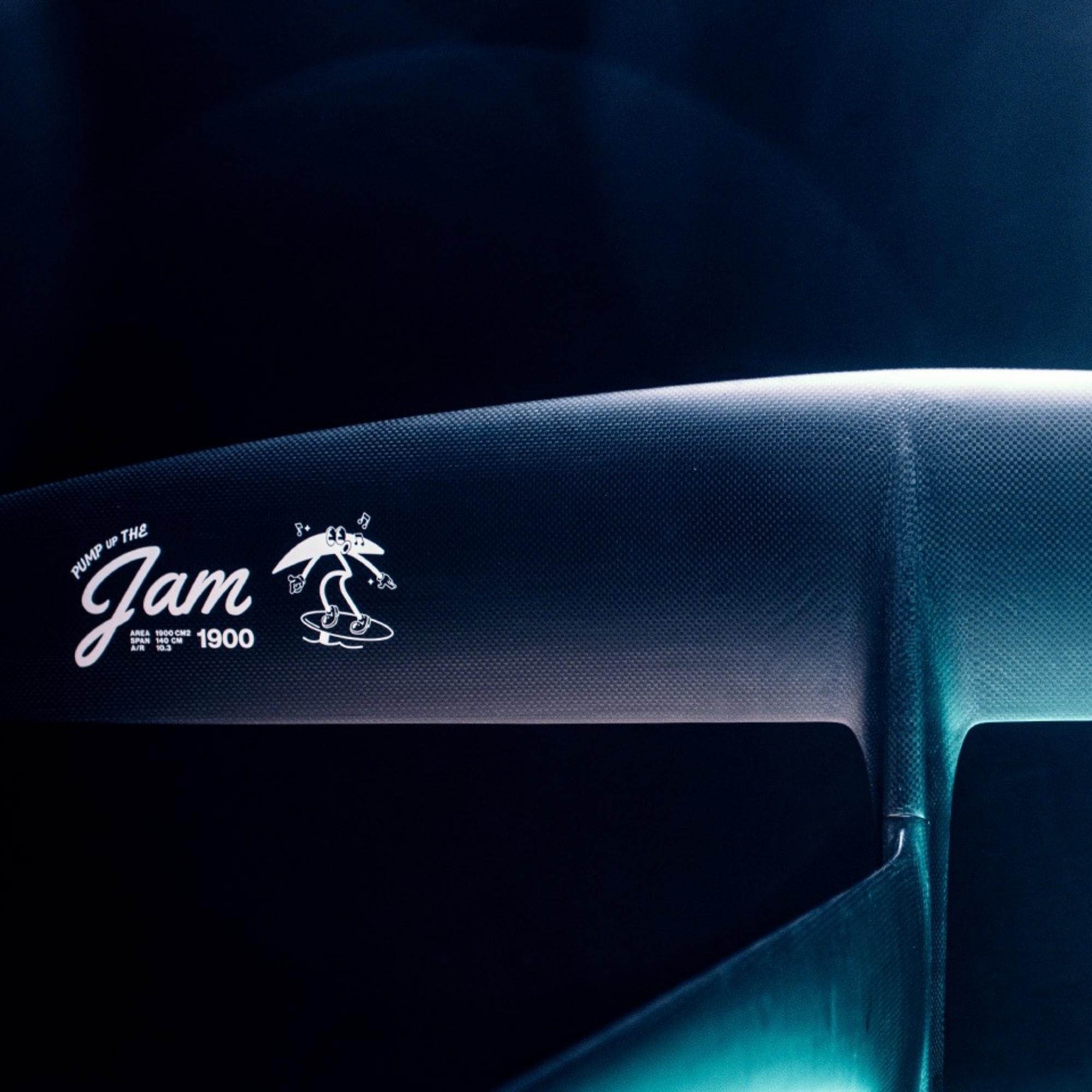

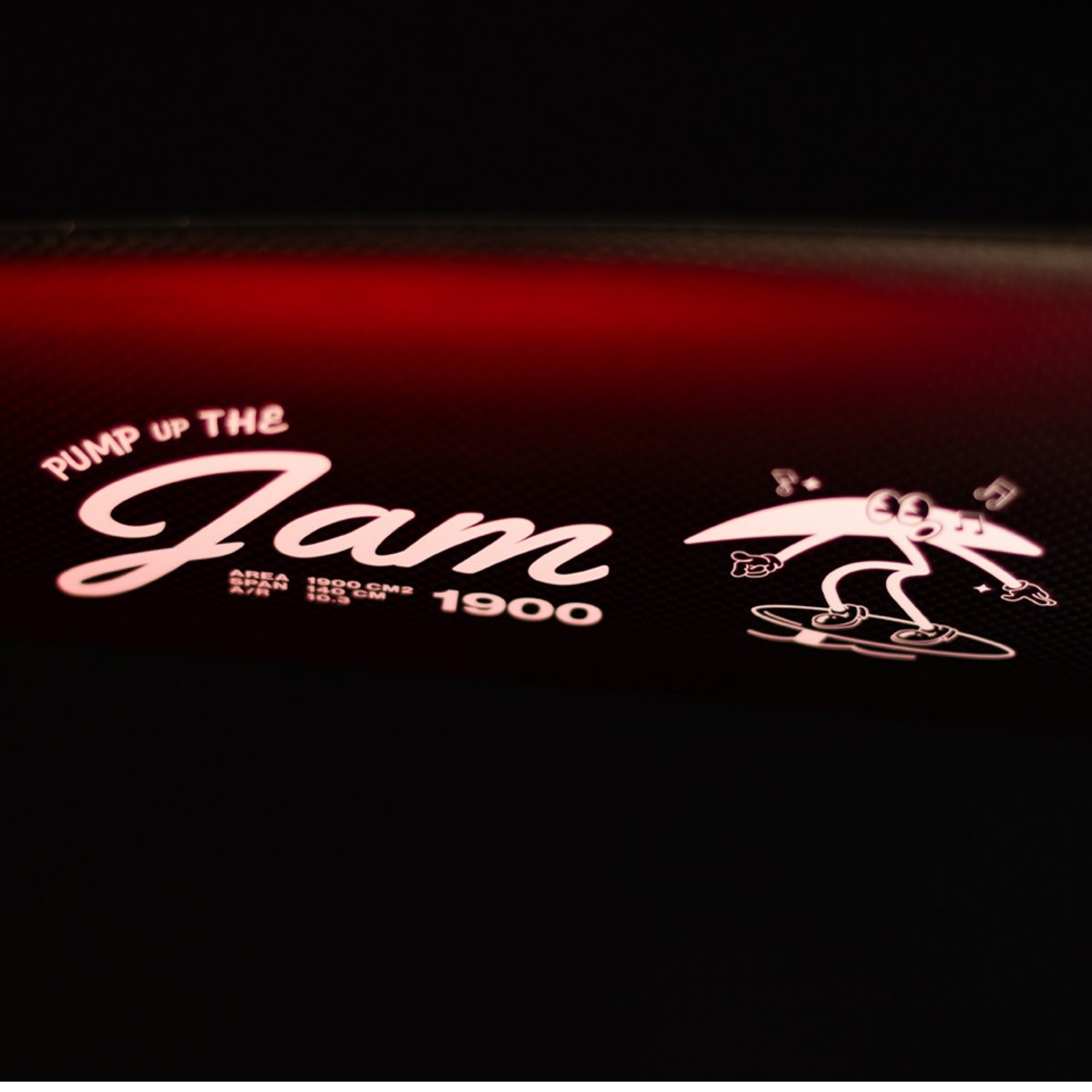

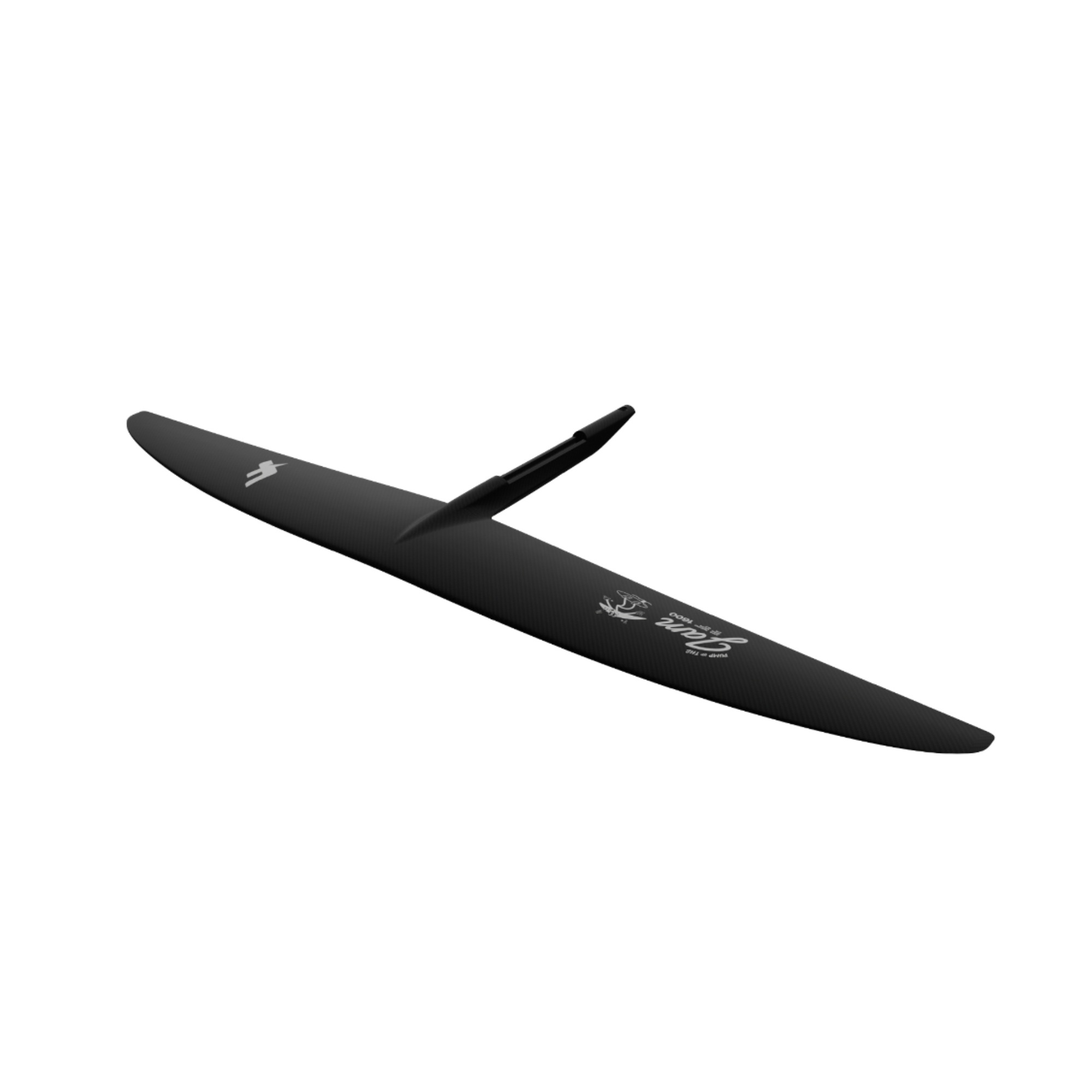

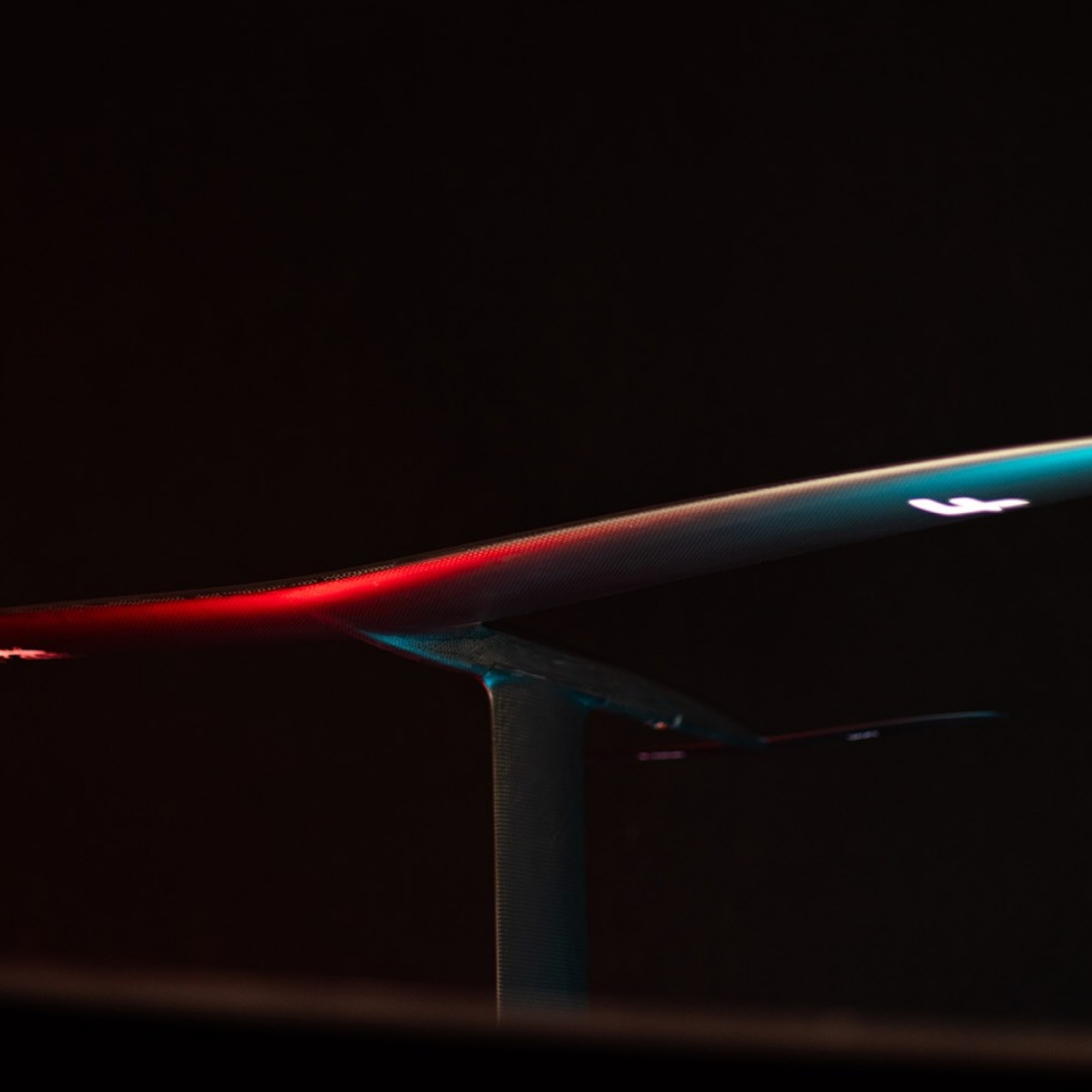

Front wing F-ONE PHANTOM FCT
Next item >

Front wing F-ONE EAGLE X UHM CARBON
713.95
DO YOU NEED ADVICE

PUMP FOIL / DOCK START / LIGHT WIND

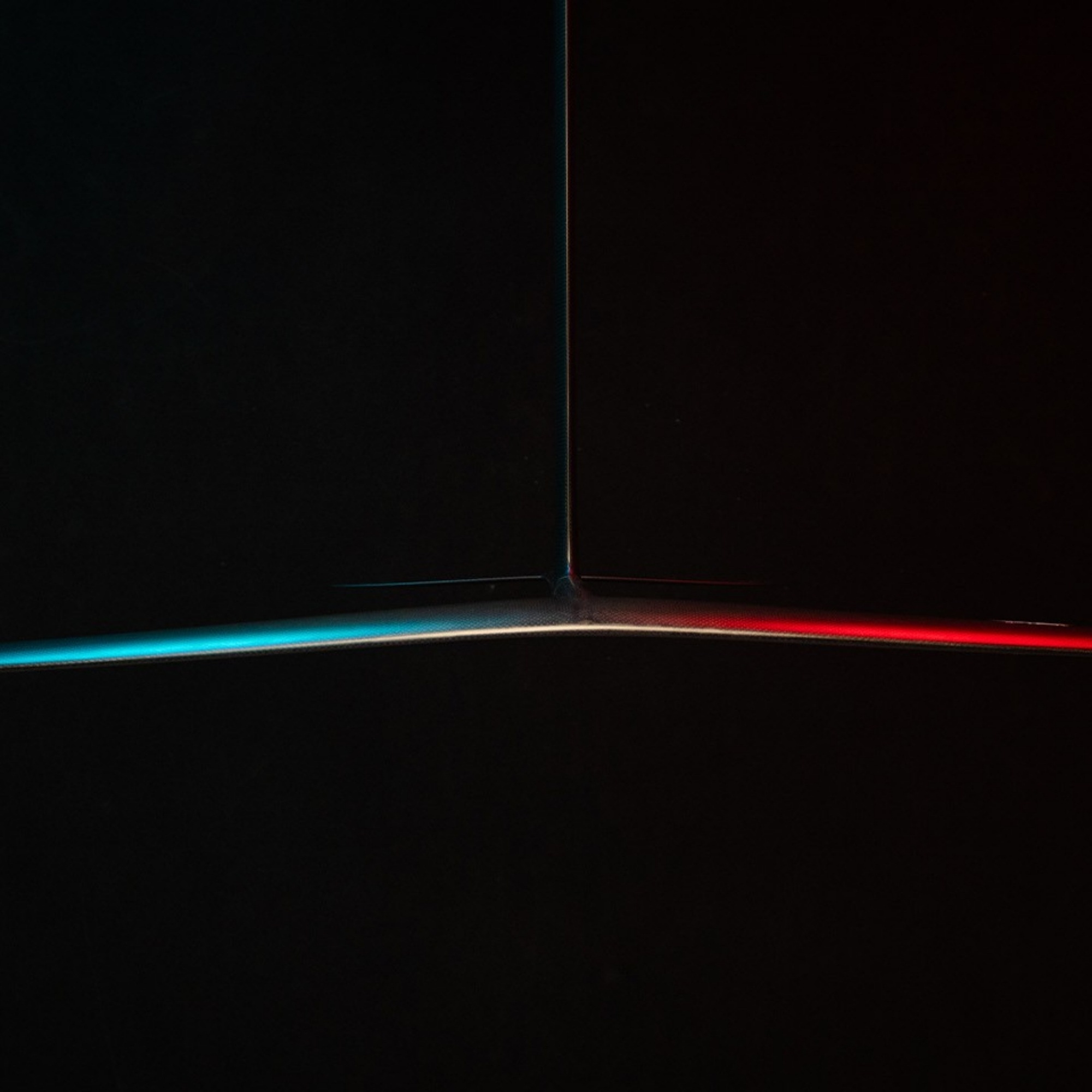

F-ONE JAM is a front foil wing designed primarily for dock starts and pump foiling, while also performing extremely well in light wind wingfoiling and marginal downwind conditions. Its large surface area, aspect ratio of 10, and high efficiency deliver easy take-offs, long glide and stable flight.

Read more

 Product videos
ShortText:

Built for pump foiling and dock starts

The JAM is designed to be highly efficient at low speeds. Just a few pumps are enough to lift off and maintain flight, and even brief pauses in pumping won’t immediately kill speed, making it very accessible and forgiving.

Efficiency and low drag

A specific profile, angle of attack and optimized geometry reduce induced drag and maximize efficiency. The JAM generates smooth, consistent lift and maintains speed with minimal effort.

Controlled maneuverability

Despite its pump-oriented design, the JAM retains enough maneuverability to adjust lines and direction comfortably. The wingtip shape allows for controlled turns and easy course corrections.

Performance in minimal conditions

Thanks to its excellent low-speed efficiency, the JAM also works well for light wind wingfoiling and downwind runs in marginal conditions. It can accelerate when needed while remaining stable and predictable.

Stiff and responsive construction

Built with a full monobloc structure using pre-preg technology and High Modulus Carbon, the JAM delivers excellent stiffness and direct feedback. The Titan connection allows compatibility with both aluminum and carbon masts.

Size guide

  • 1400 cm² – for experienced pump and dock start riders, beginners in SUP downwind, and light wind wingfoiling
  • 1600 cm² – the most versatile size, ideal for learning dock starts, pump foiling, SUP foiling and downwind
  • 1900 cm² – maximum lift and stability for dock starts, flatwater pumping and heavier riders

Recommended pairing: Monobloc Tail Pumping XXS 200 for optimal pumping efficiency and glide.

Features

  • Aspect Ratio 10 - High aspect ratio delivering excellent efficiency, long glide and low drag
  • High Modulus Carbon - Carbon fiber layup 1.5x stiffer than standard constructions, improving stability and precision
  • Monobloc Front Wing - One-piece front wing and fuselage construction eliminating unwanted movement and improving load transfer
  • Titan Connection - Very stiff and direct connection between foil components, compact and easy to assemble
  • Pre Preg Technology - Pre-impregnated carbon fibers ensure optimal resin ratio, low weight and durability

Set includes

  • Front wing
  • Cover
  • Screws: 3x M6-32mm + 2x M6-25mm
  • Torx key



For instant answer - open the chat and ask your question. We're active 9.00-17.00 CET.

Is it afterhours? ​No problem - leave us a message and we’ll respond early the next day.

​+48 513 020 570

For those who prefer phone calls - that's our number. You can give us a ring between 9.00-17.00 CET.

Specification
VariantFront wing F-ONE JAM HM CARBON 1400Front wing F-ONE JAM HM CARBON 1600Front wing F-ONE JAM HM CARBON 1900
Modular systemF-ONE TITANF-ONE TITANF-ONE TITAN

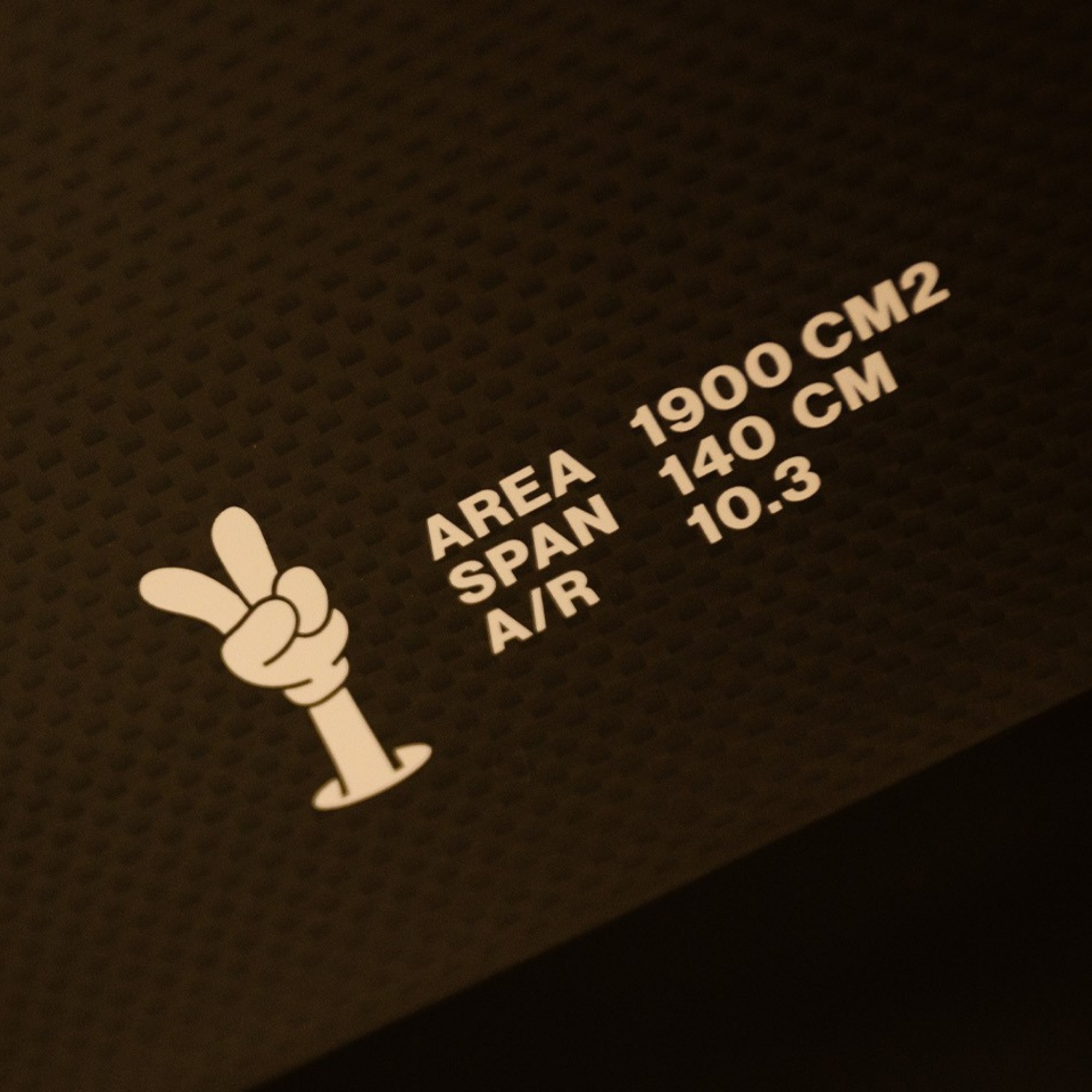

Front wing area (cm²)140016001900
Front wing span (cm)120128140
Front wing aspect ratio10.310.210.5
Wing materialCarbonCarbonCarbon
Screw set3x M6-32mm + 2x M6-25mm3x M6-32mm + 2x M6-25mm3x M6-32mm + 2x M6-25mm
Foilbag includedYesYesYes
Weight (kg)1.832.032.42
SKUFONE-77247-0159-1400FONE-77247-0160-1600FONE-77247-0161-1900
