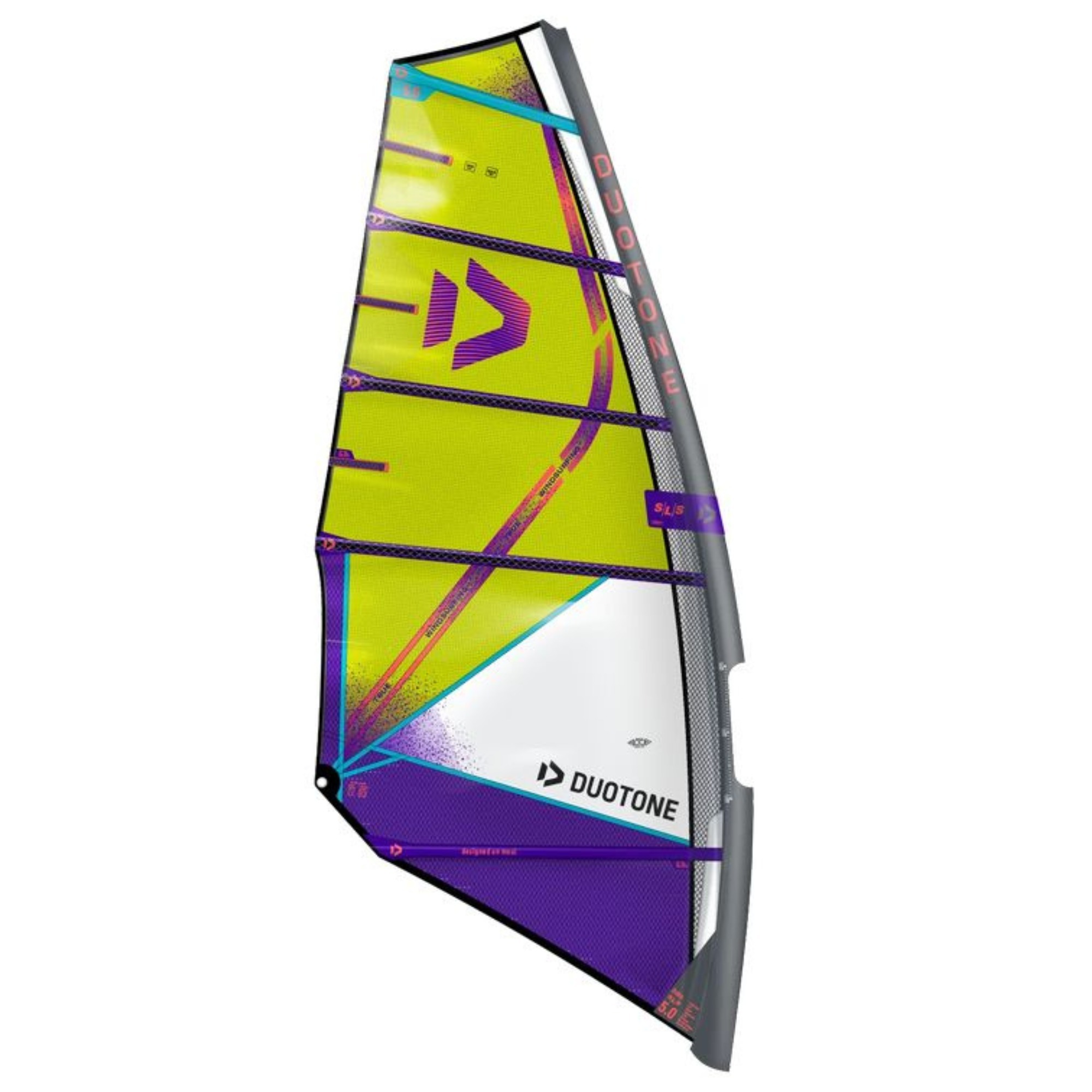

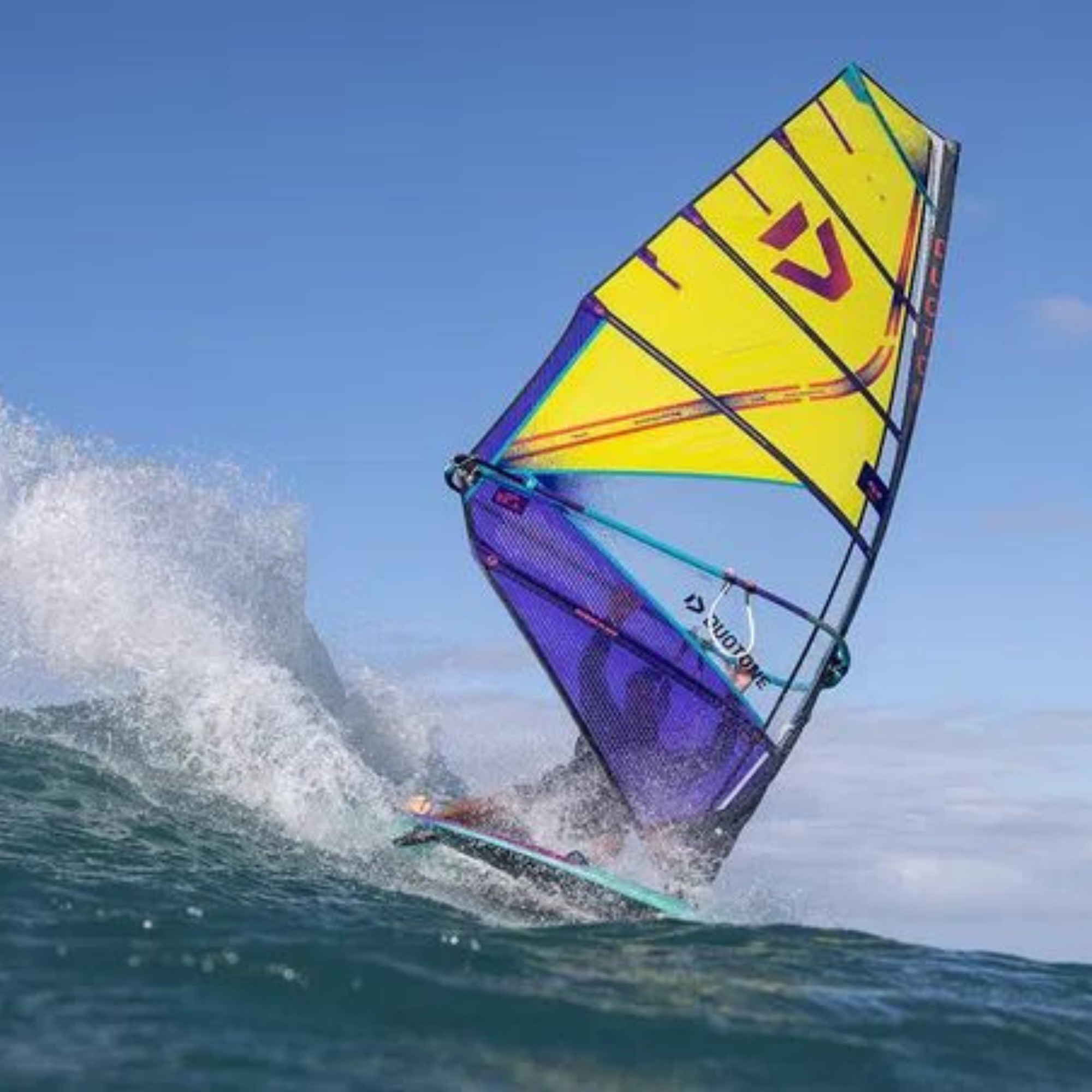

Join usOn lower drag single-fin boards (e.g. Freewave or small Freeride boards) the DUKE SLS has a slight forward pull (similar to the Original DUKE).
On higher drag multi-fin wave boards, however, the pull is evenly distributed over both hands. On such boards, the new DUKE SLS has a very similar feel to the SUPER_HERO D/LAB making it really suitable even for proper wave sailing conditions.
But how was this made possible?
Well, it is a combination of an extremely sophisticated sail concept (3d-shaping, twist pattern and profile distribution) and the use of CARBON XPLY batten pockets. The DUKE SLS features a slightly forward draft position, but with a defined flexibility. The Duotone call this DEFINED DRAFT MOTION CONCEPT. Normally, this is a no-go for sails with “soft” epoxy battens, as any draft movement reduces the wind range. But this is where the CARBON XPLY batten pockets come into play: as Carbon has virtually no stretch, it locks the battens thus draft in its defined position - actually pretty similar to a Carbon batten.
Believe it or not, in this way the Duotone virtually merged the advantages of the Original DUKE with those of the SUPER HERO D/LAB creating the ultimate 5-batten Wave><Freewave sail.
Ok, so the DUKE SLS feels similar to the SUPER_HERO D/LAB - but what about the low end power? 5-batten wave sails offer great control, but usually suffer in the low-end as more battens make it harder for the wind to inflate the sail. That’s why the Duotone has incorporated the BATTEN FREE CENTER concept that already use on the SUPER_HERO and the Original DUKE. Instead of the usual even batten distribution, the DUKE SLS features a bigger gap between the foot batten and the batten above the boom. This makes the boom area easier to inflate, resulting in a similar low-end power to a 4-batten sail.
But it’s getting even better: due to the additional use of CARBON XPLY in the high load top and tack areas plus a STRIPPED TO THE MAX panel layout the Duotone was able to bring down the weight by a whopping 400-500g compared to the Original DUKE.
So what keeps you waiting - DUKE SLS the first sail morphing the advantages of a Freewave sail with a truly capable down the line wave sail.
Product highlights
Chameleon Character
The first sail morphing the advantages of a Freewave sail with a truly capable down the line wave sail
Batten Free Center
Larger gap between the foot batten and the batten above the boom >> better inflation (= planing power) in the boom area and improved stability in the upper sail area
SLS >> Strong-Light-Superior
400-500g lighter than the Original DUKE
VTS TAIL outhaul specs
Each sail carries individually defined visual indications for the correct outhaul extension (requires VTS TAIL boom)
iROCKET 2.0
Factory calibrated individual batten tensions using a torque wrench
Super-light bumper incl. VTS slot
The lightest protector on the market. The integrated vinyl viewing window allows to spot the lower edge of the mast. Once the perfect trim has been found, the optional Velcro patch can be used to “save” this position – saving time and ensuring maximum performance.
Features
3D Top Cap
Optimised pull. On regular top caps and pin systems, the webbing is connected in a “one-dimensional” way with the sail body (either side to side or front to back), which transfers the downhaul tension only in certain points. The 3D TOP CAP allows a “three-dimensional” and very widespread transition of the downhaul forces into the sail body. This eliminates top fluttering and ensures a progressive loose leech, extending the wind range. The integrated abrasion ribs eliminate the need for heavy, bulky reinforcements at the end of the luff sleeve
One Piece Sleeve
No more seam at the leading edge > 80 g lower weight > no hard spot through overlapping panels improves elasticity at the leading edge
Polyester Webbing Only
Eliminating stretch and loss of tension. If it’s good enough for safety harnesses, it’s good enough for windsurfers! Duotone is the only manufacturer to use only polyester webbing for the (vario) top and the tack roller. This advantage of this compared to conventional polypropylene is the negligible amount of stretch. As a result, even brand-new sails will retain full luff tension and will not need subsequent trimming
Double D Buckle
Inspired by high-strength climbing harnesses and Formula 1 helmets. The exclusive, two-part metal double-D buckle on the vario top, which replaces traditional solutions. This design guarantees the best trimming characteristics and eliminates all webbing slippage
TT Top
Improved sail control at higher winds. Designer Kai Hopf originally designed the TT TOP for the WARP. The reduced, concave shape improves tension conditions for a more effective, three-dimensional top twist. This means the top twists not only horizontally, but also vertically under strong winds. By completely neutralising gusts of wind, the rig is kept steady in the rider’s hands, and thus works in a much larger range of winds
IBumper Incl. VTS Slot
A real innovation that offers additional value is the new iBUMPER 2.0, since in addition to its function as a lightweight and reliable mast protector, it is also useful as a trimming tool. After stretching on a new sail, the best indicator for optimum trim is the position of the mast end at the height of the protector. For this reason, the new iBumpur now has a vinyl viewing window so that the lower edge of the mast ca be identified
VTS - Visual Trim System
Perfect trim and a huge range of use. You won’t find a quicker or more accurate way of trimming your sail. Even beginners can trim the sail in a matter of seconds to 100% accuracy. All you need to do is pull the luff until the top of the loose leech reaches the “lower wind limit” or “upper wind limit”. The VTS acts as a power boost, ensuring maximum performance and broader range of use
IRocket 2.0
Super-lightweight and aerodynamic. An inconspicuous detail with a massive impact. iROCKET 2.0 batten tensioners are super-lightweight, aerodynamic and highly stable, consisting of high-quality components such as a self-lubricating, salt-water-resistant brass nut with stainless-steel screw which can withstand all batten tensions. Furthermore, the iROCKET 2.0 is an essential component for a true windsurfing revolution. 100% correct batten tension, correctly adjusted when purchased and forever after
Epoxy Batten
Extremely stable, extremely break-resistant. Depending on the range of use, positioning in the sail and the necessary tension, the batten stress is enormous. In order to prevent breakages, the Duotone only fit into all solid battens extremely durable epoxy laminates which really can withstand anything and can live up to DUOTONE’s promises in terms of longevity
Mini Batten
These prevent unwanted leech flutter. Short and highly effective mini-battens which provide support for the areas between the battens and prevent undesirable flutter
XPly Plus
The Duotone use only 150 or 100 micron thick films for their exclusive XPLY PLUS. In an extensive series of tests, they have developed the ideal combination of necessary film thickness and number of threads. The X.PLY PLUS in particular, at 150 microns in thickness, boasts durability characteristics far in excess of previous laminates at minimal weight
Sleeve Opener
Frictionless insertion of the mast into the luff sleeve. An ingenious solution does away with the tedium of inserting the mast. The DUOTONE logo above the boom cutout gently opens the sleeve so that the mast can be threaded with one hand into the luff friction-free, without having to constantly make adjustments to the luff
Triple Tack Roller 3.0
Find the perfect trim with minimal effort. The integrated, nickel-plated brass triple roller minimizes the downhaul forces tremendously
Individual Boom Length Indication
The correct boom length without the need for trial and error. Because the boom is attached to the mast at different heights depending on body size, and because this creates a different angle to the mast, the boom length will vary. Specific recommendations for the correct length are printed directly on the luff sleeve at the boom level
HTS 2.0 Harnessline Trim System
Never position your harness lines incorrectly again. Do away with the tedium of adjusting to the optimum rope position, as well as the numb forearms and the endless fiddling around. The patented print on the sail shows exactly where the center of the harness line has to be. All you need to do is position the two ends symmetrically at the left and right of the print
VTS Tail Outhaul Specs
Each sail carries individually defined visual indications for the correct outhaul extension (requires VTS TAIL boom)
Duratech Foot
Long-term guarantee for the sail foot. When starting off on the water or catching up, the foot of the sail is constantly dragged over the nonslip coating, particularly for wide boards. With the exclusive DURATECH FOOT, the seams are completely protected within a large plastic channel so that the surface cannot chafe against seams and material
Twin Strap
This keeps the sail rolled up and holds the protector to the mast. A brilliantly simple fastening system which keeps the sail compact and closed after being rolled up and, when on the water, holds the mast protector closely to the mast
