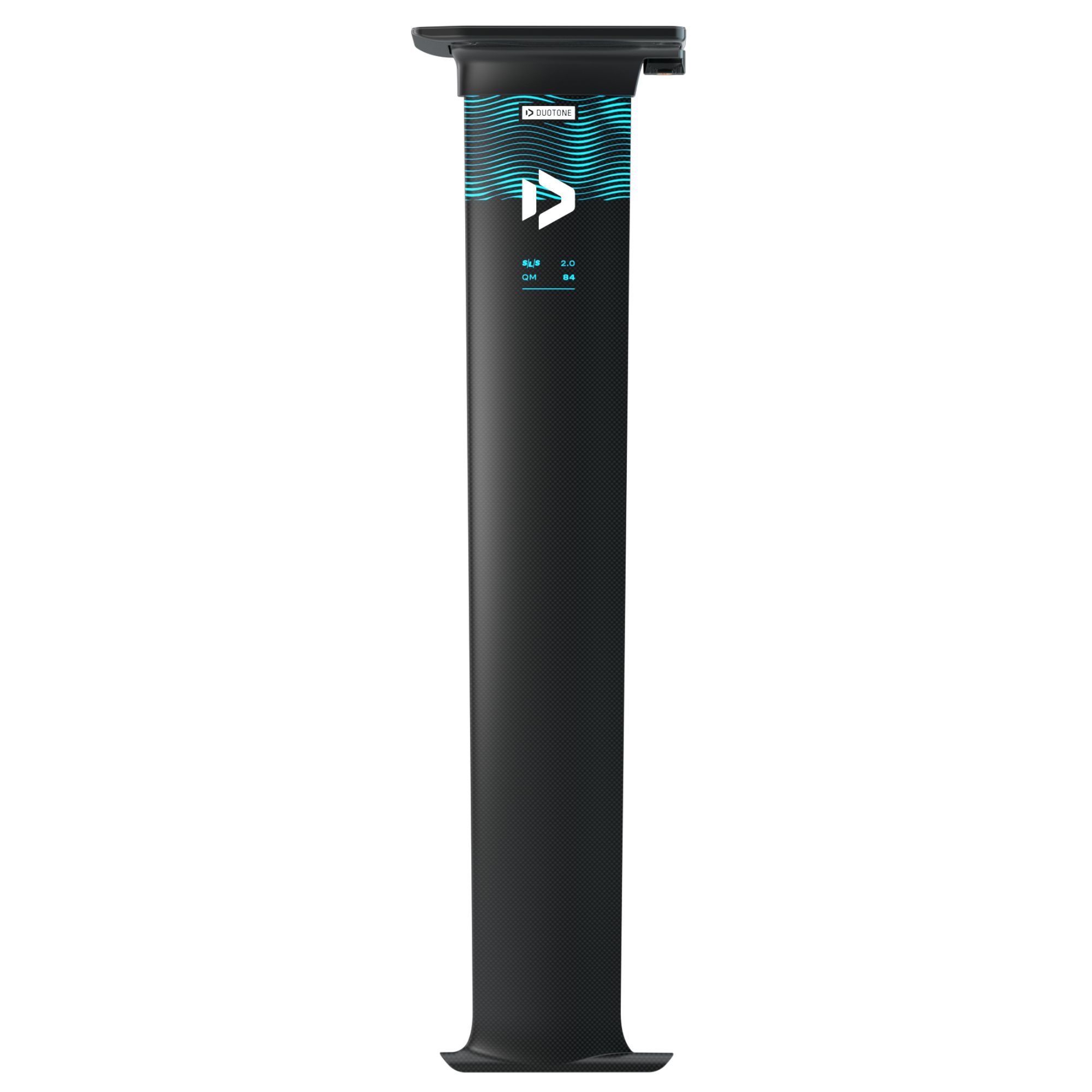

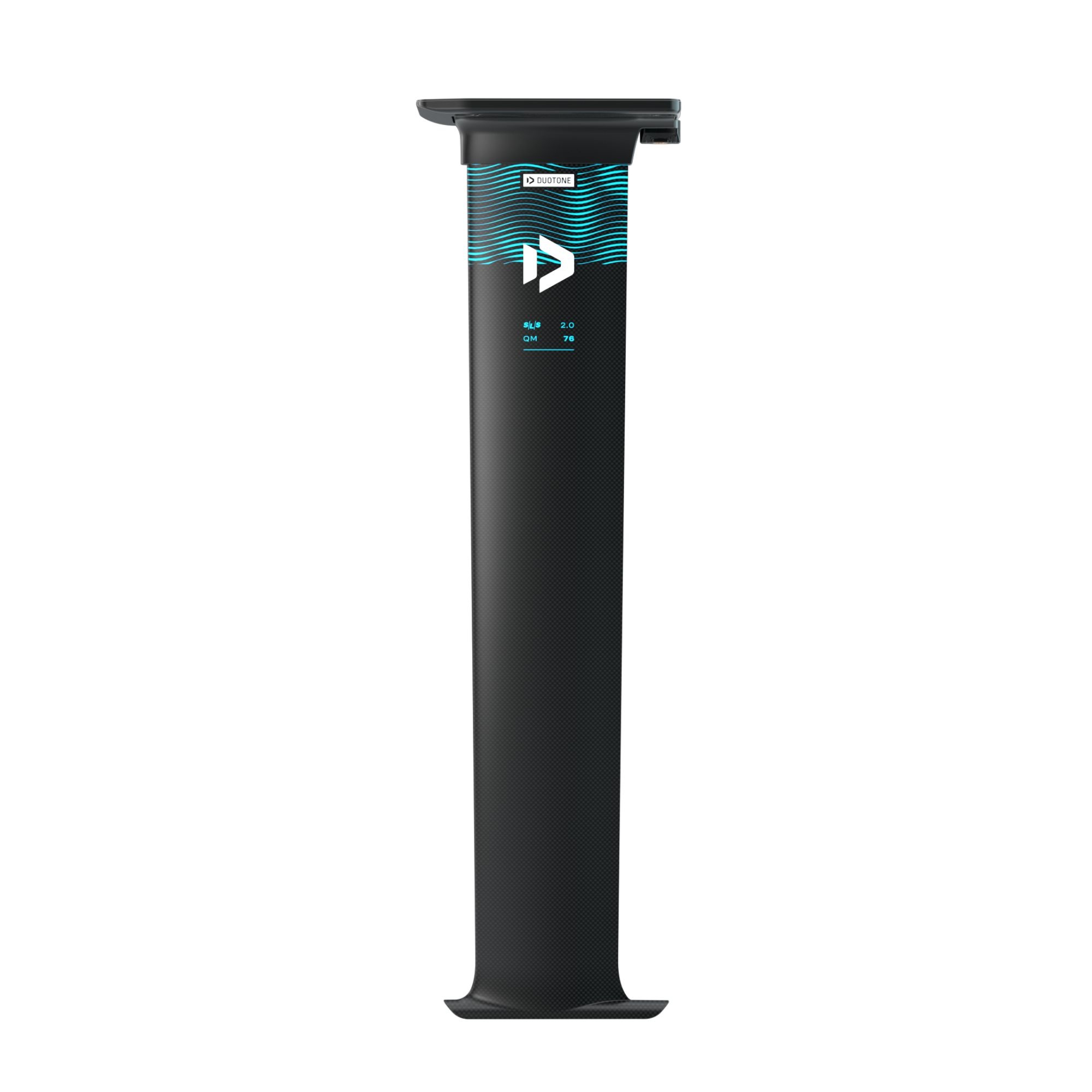

SLS 2.0 carbon mast with Quickmount
The Mast SLS 2.0 QM uses the same tapered design and low-drag profile as the one-piece SLS 2.0 mast, but replaces the integrated base with the Quickmount system and an aluminium base plate.
This keeps the performance characteristics of the new SLS generation while making setup, transport, and foil changes significantly faster and easier.

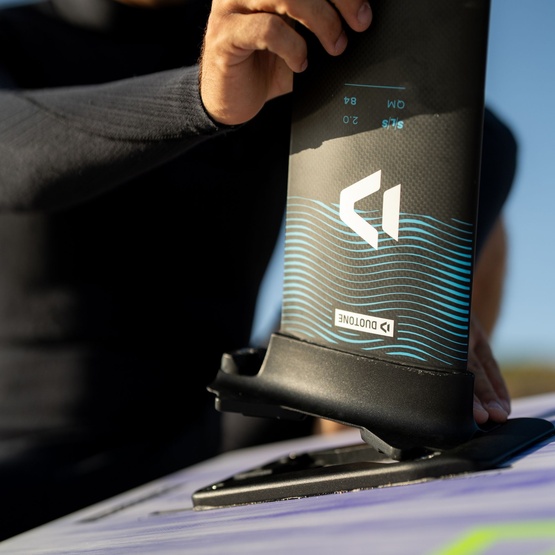

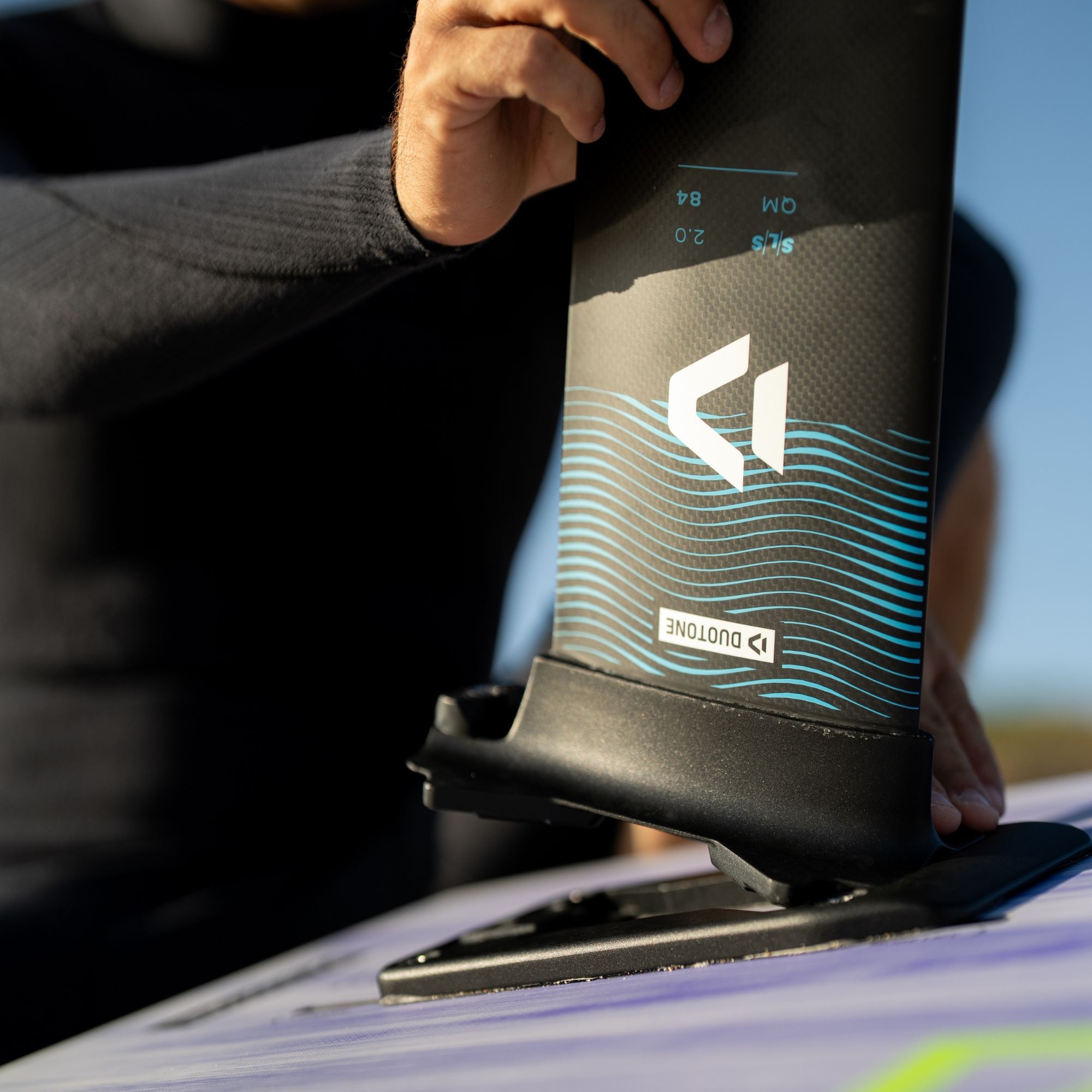

Quickmount – tool-free setup

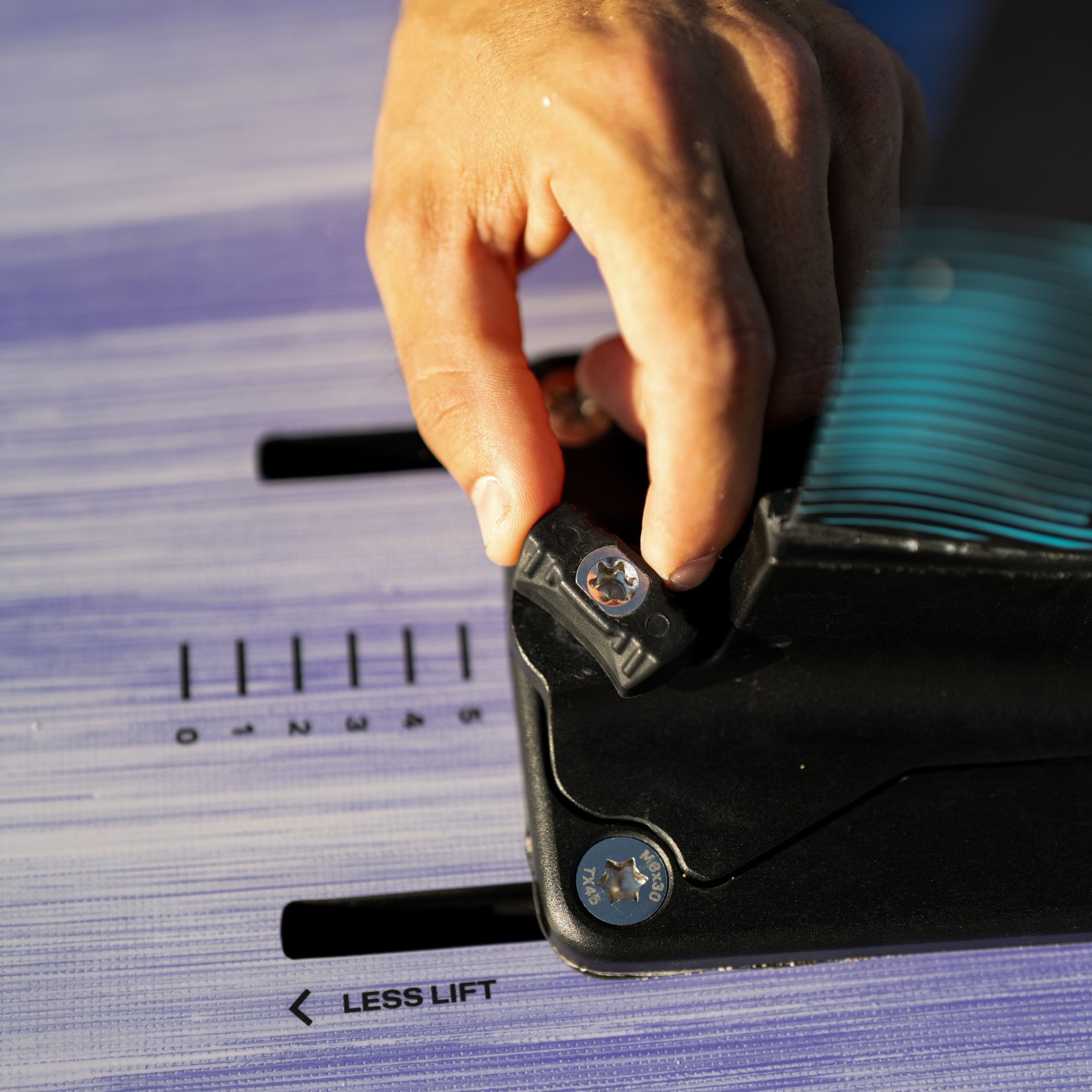

The Quickmount system allows the mast to be installed or removed within seconds using a single screw mechanism without the need for tools.

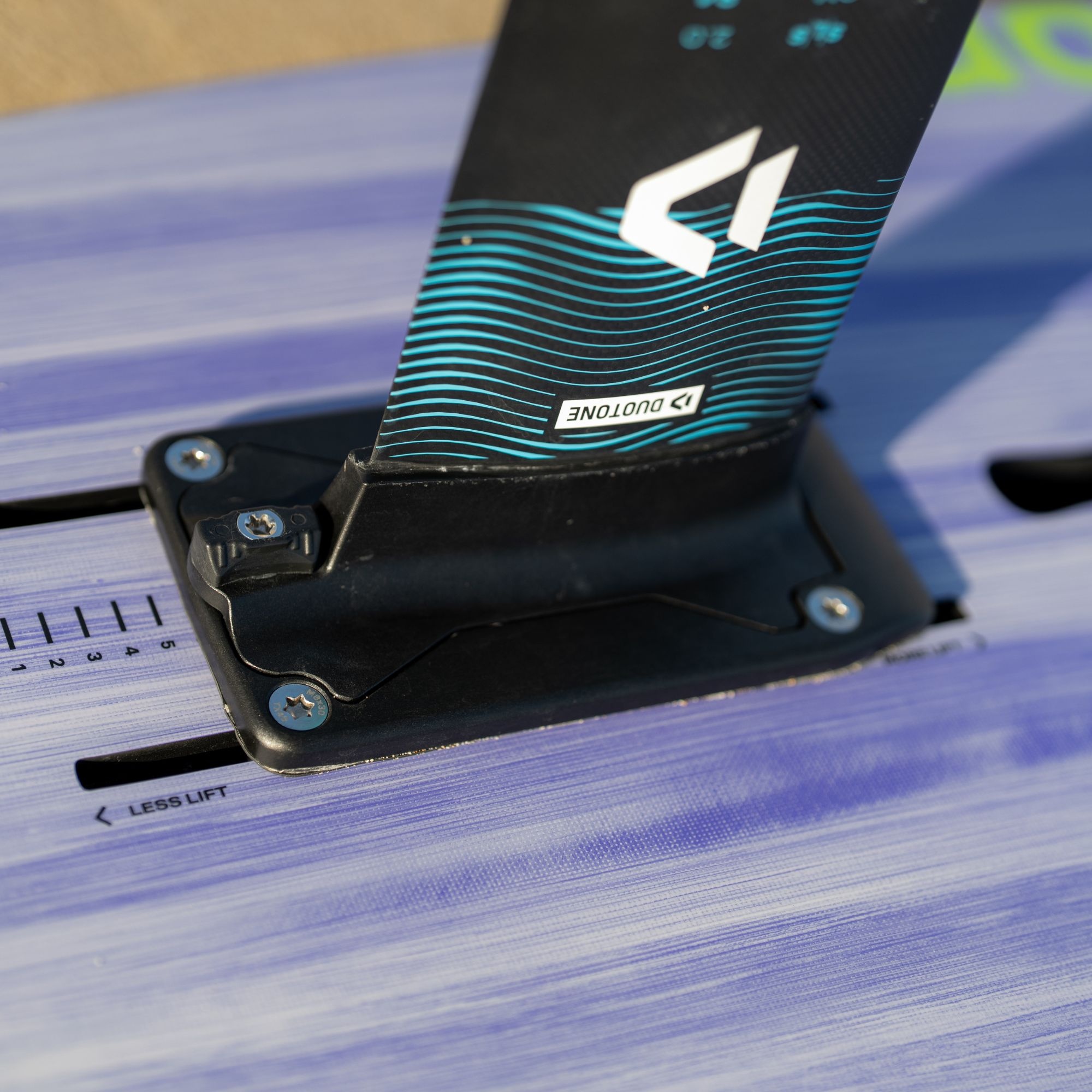

The base plate can remain fixed to the board in the preferred position, so the mast itself can be attached or detached quickly before and after a session.
D/LAB-inspired profile
The refined mast profile takes inspiration from the D/LAB range. Its geometry is designed for smooth acceleration, low drag, and a balanced combination of performance and control.
The Mast SLS 2.0 QM sits between Duotone’s aluminium and D/LAB mast ranges, offering a strong balance of efficiency, stiffness, control, and accessibility.
Tapered mast design and reduced drag
The new tapered mast design reduces wetted surface area and hydrodynamic drag.
This improves speed retention, supports smoother acceleration, and reduces energy loss while flying on foil.
Carbon construction – direct feedback
The carbon mast construction provides high stiffness and direct load transfer between the board and foil.
This gives the rider more precise feedback from the foil and a more connected response during steering and maneuvers.

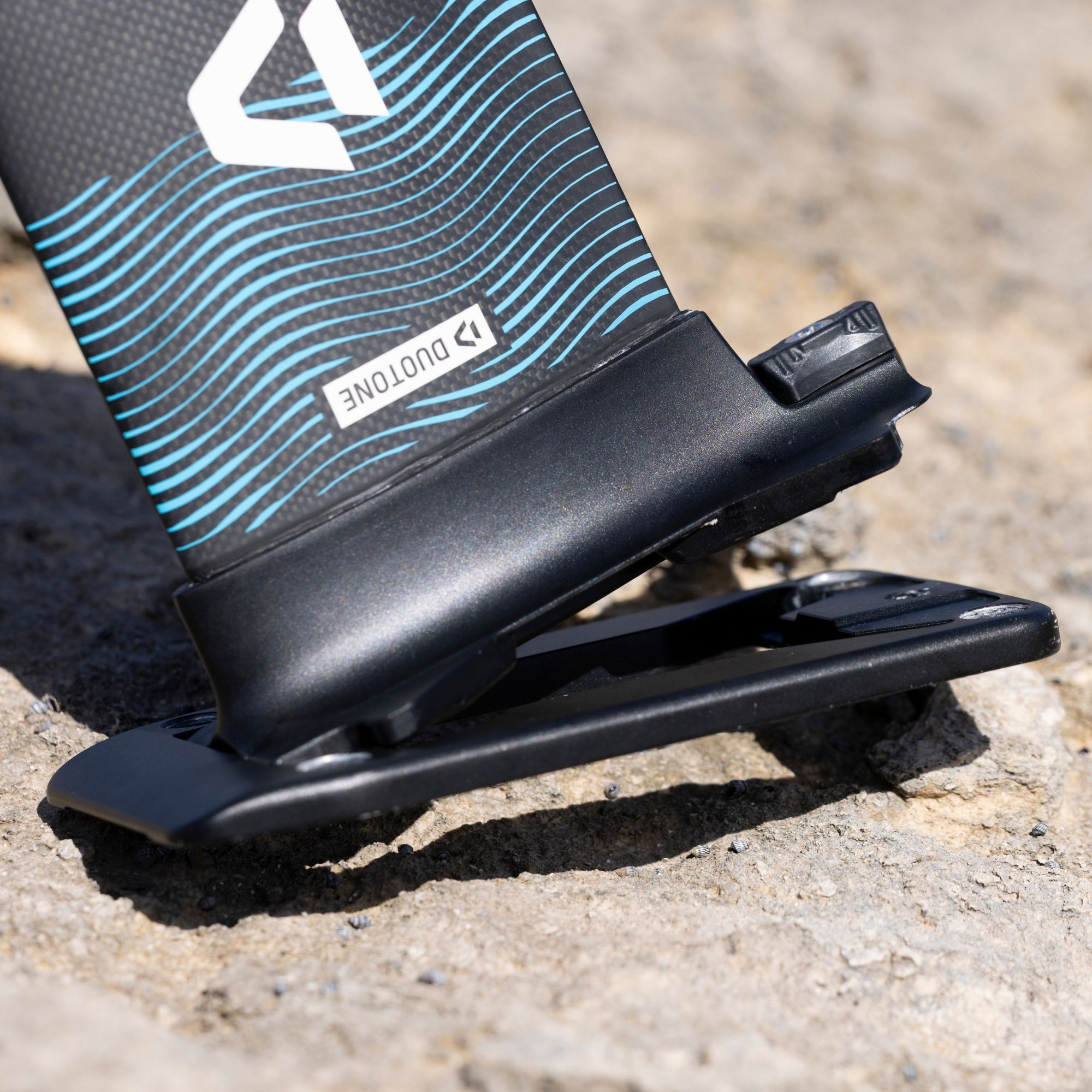

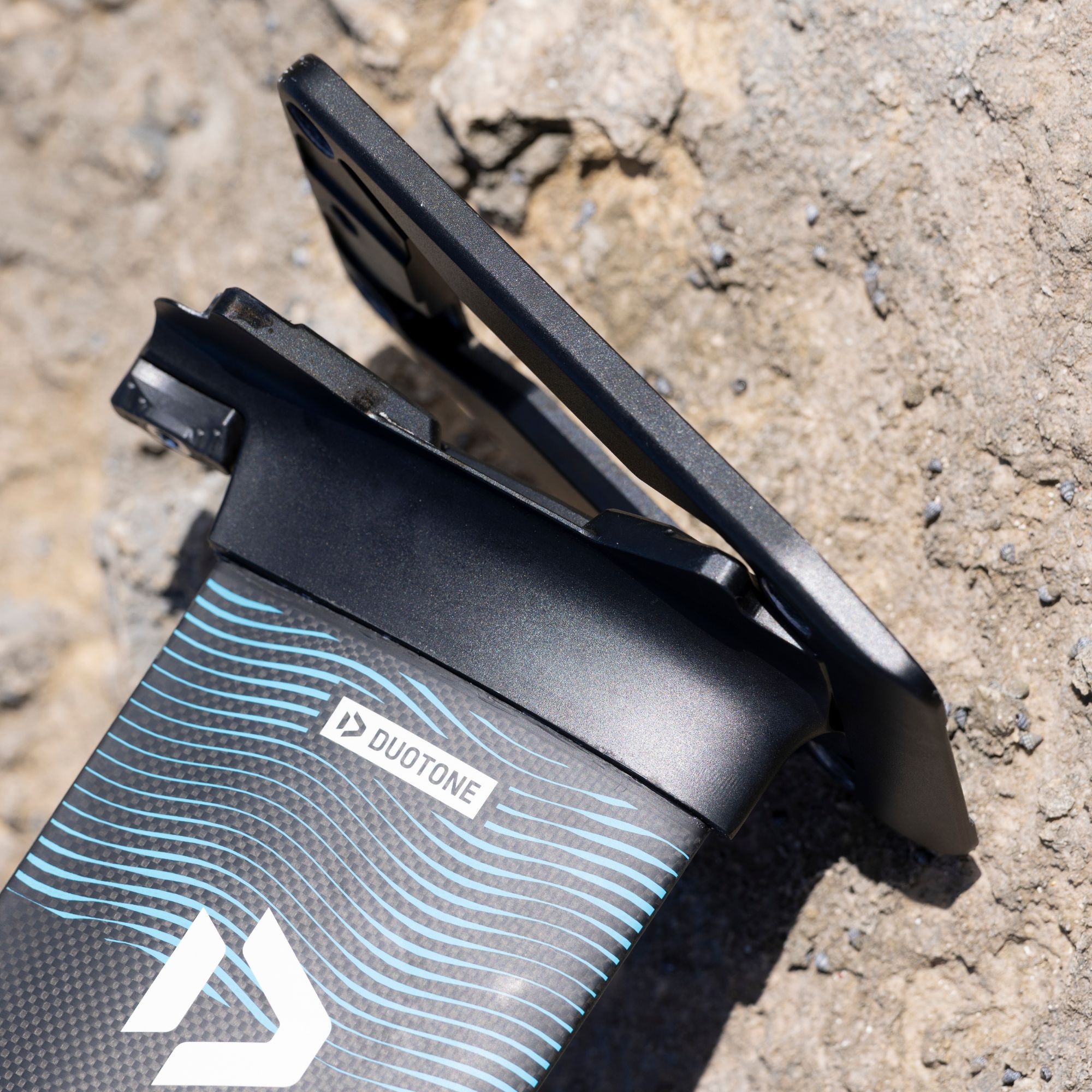

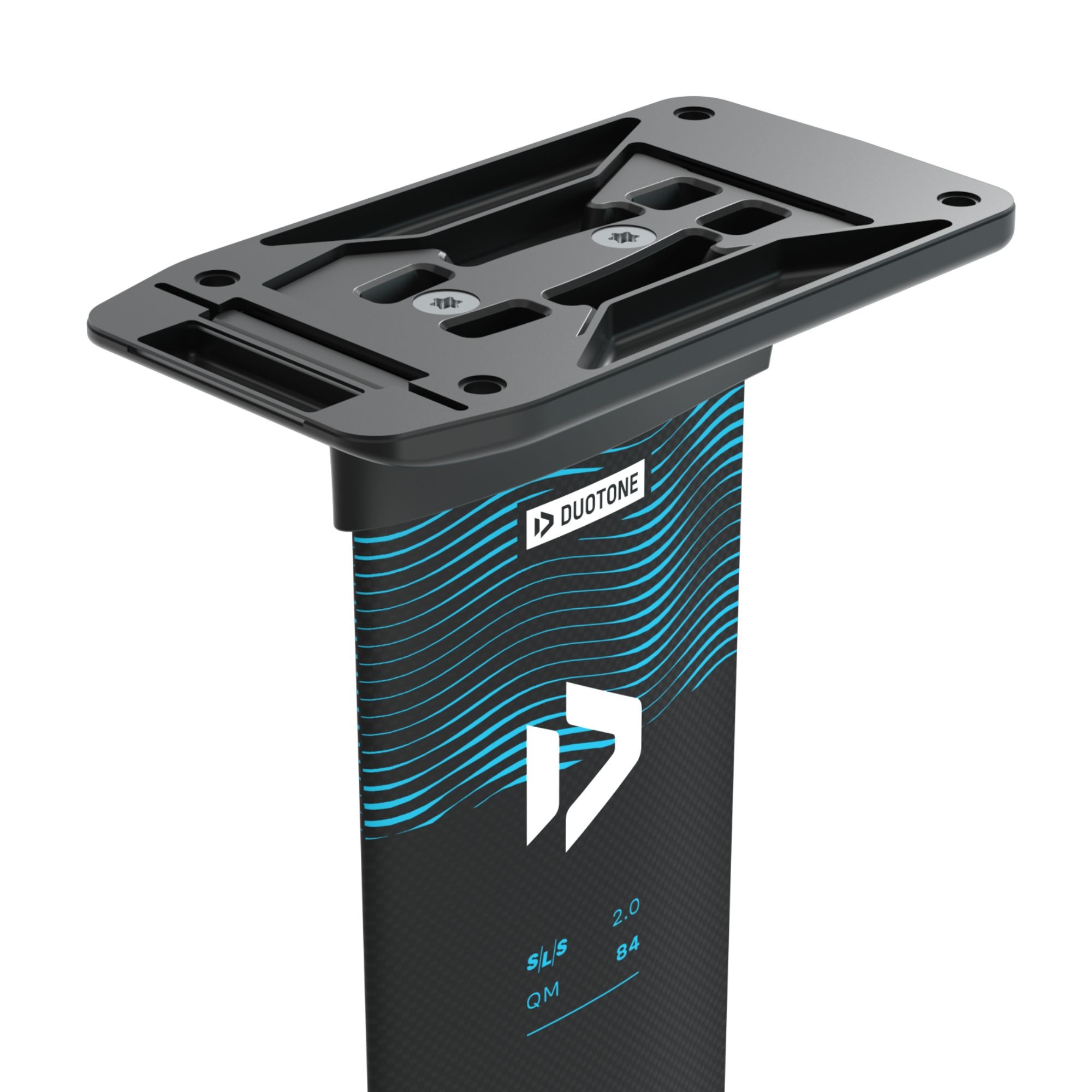

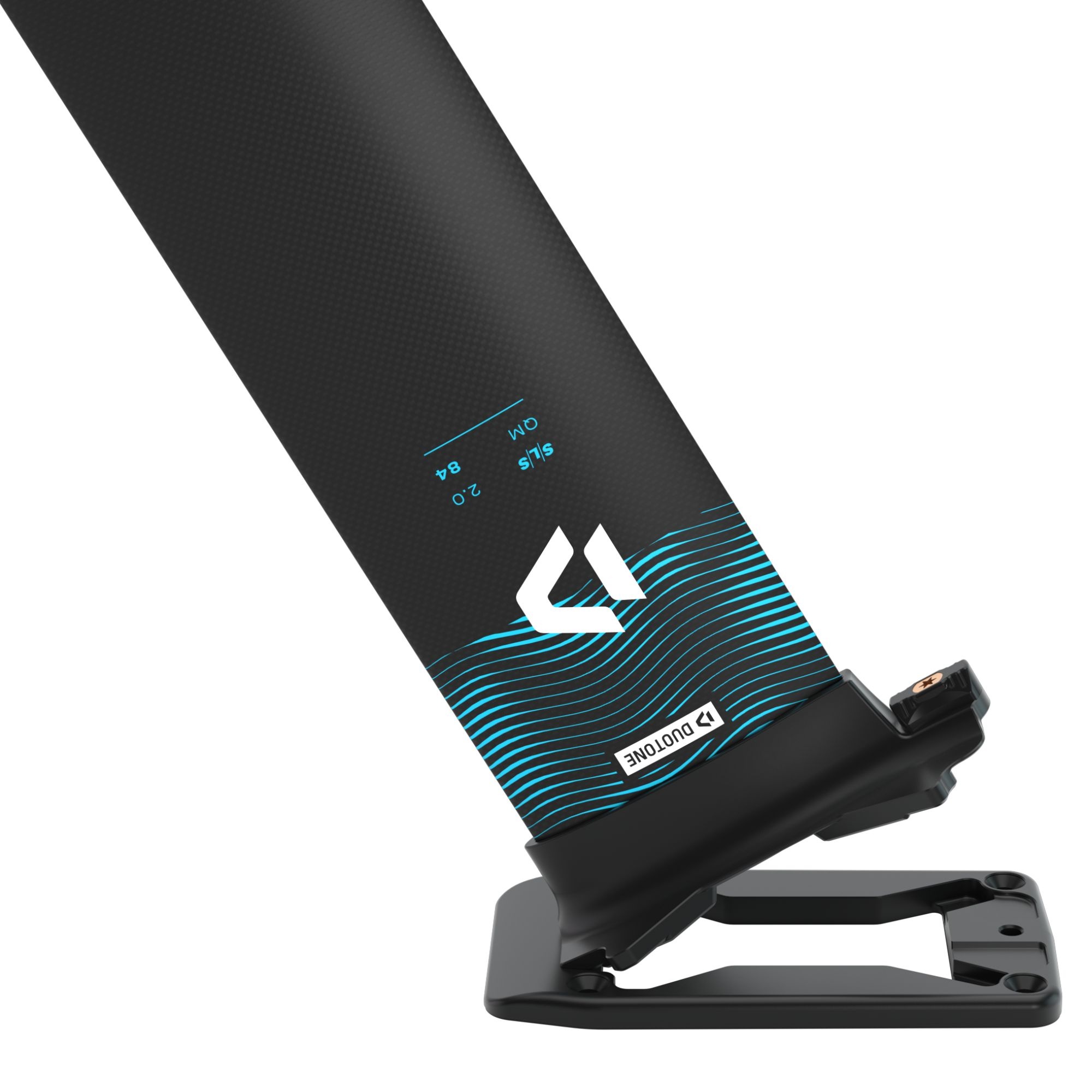

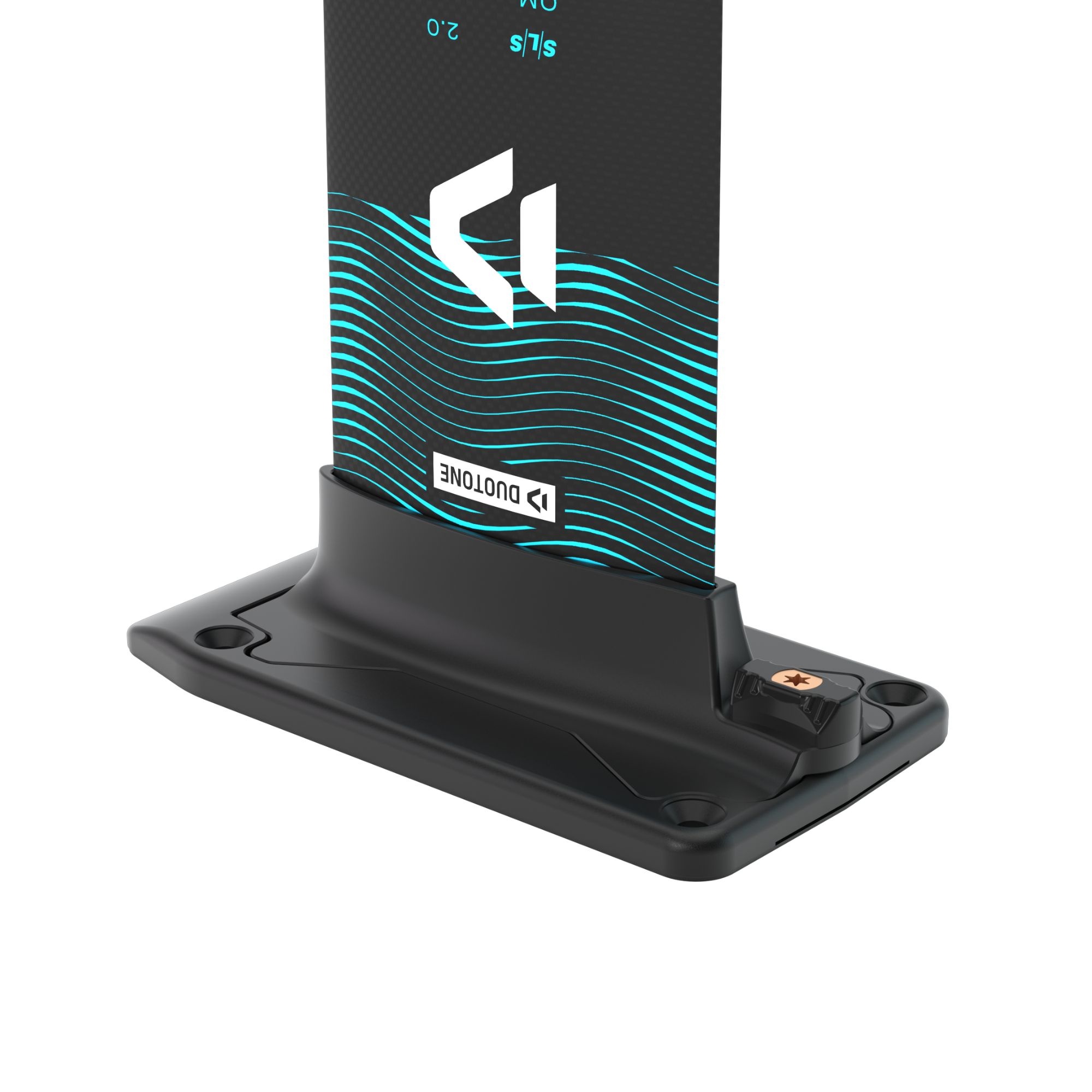

Aluminium Quickmount base plate
The QM version uses a low-drag aluminium base plate instead of a one-piece carbon mast and plate construction.
The system is fully compatible with previous Duotone Quickmount base plates, allowing existing components to remain part of the setup.

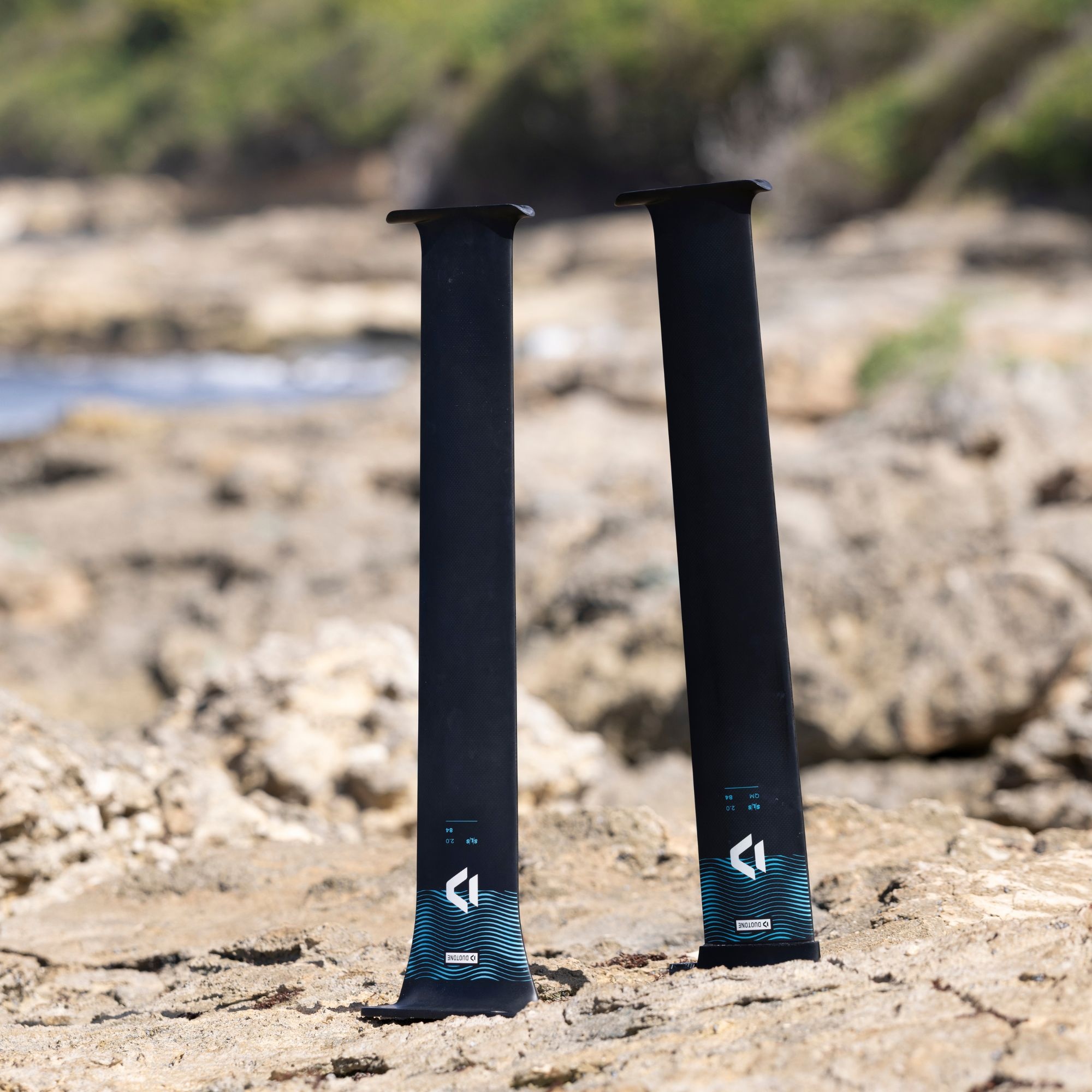

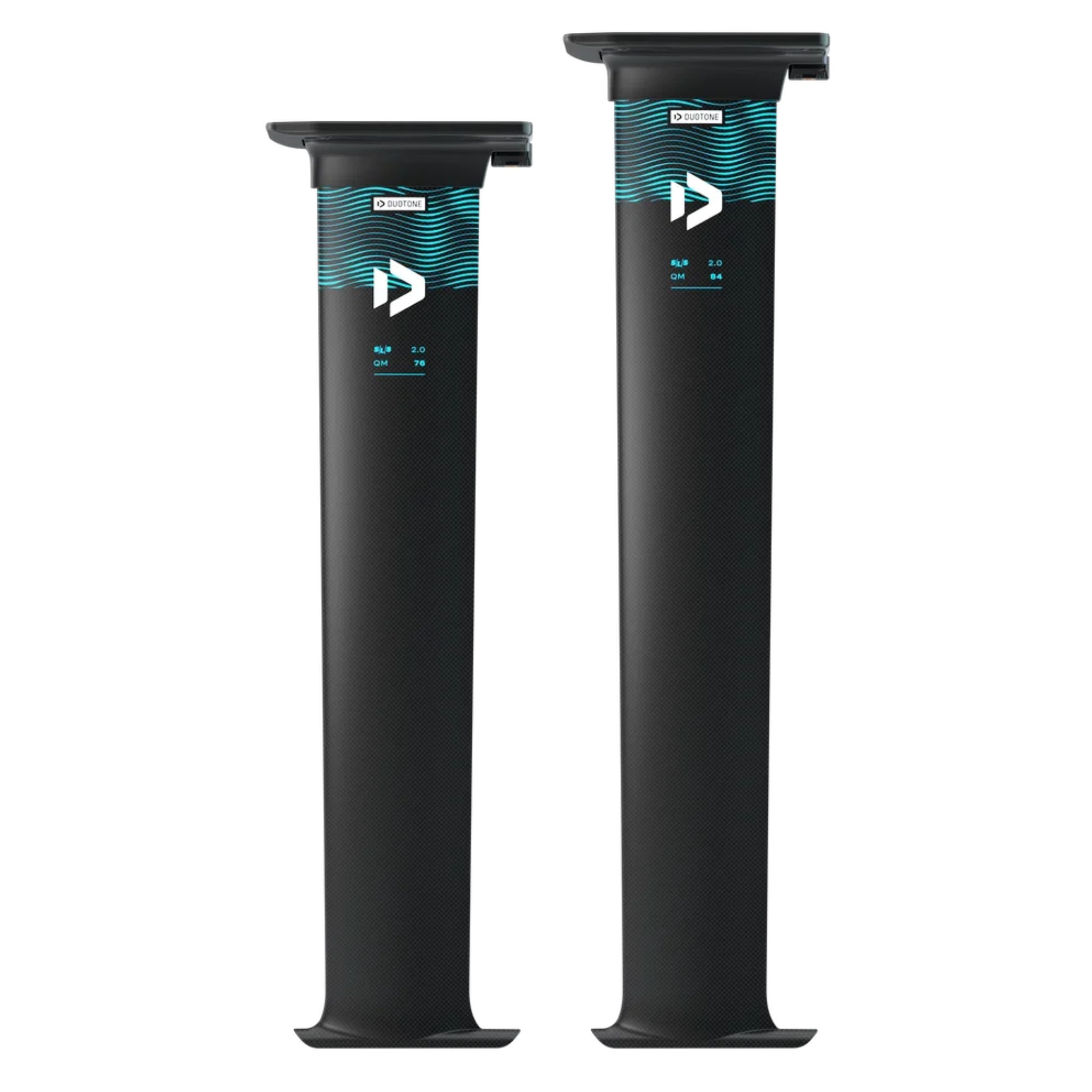

Two sizes: 76 and 84 cm
The Mast SLS 2.0 QM is available in 76 and 84 cm lengths. Both versions use the same profile concept and 3BS / 3BS+ connection system.
Technical specifications
76 cm
Chord: 120 mm, tapering to 135 mm close to the plate
Thickness: 18 mm, tapering to 20 mm close to the plate
Weight: TBA
3BS screws: 3 x M8 x 50, TX45 / 15 Nm
4th 3BS+ screw: 1 x M6 x 32, TX30 / 10 Nm
Recommended torque: 15 Nm M8 / 10 Nm M6
84 cm
Chord: 120 mm, tapering to 135 mm close to the plate
Thickness: 18 mm, tapering to 20 mm close to the plate
Weight: TBA
3BS screws: 3 x M8 x 50, TX45 / 15 Nm
4th 3BS+ screw: 1 x M6 x 32, TX30 / 10 Nm
Recommended torque: 15 Nm M8 / 10 Nm M6
The fourth 3BS+ screw is not included with the mast and comes with the matching tail
Features
- Quickmount System - Allows the mast to be installed or removed within seconds using a single screw mechanism without tools
- Carbon Mast Construction - Provides high stiffness, direct load transfer, and precise foil feedback
- Tapered Mast Design - Reduces wetted surface area and hydrodynamic drag for improved efficiency
- D/LAB-Inspired Profile - Refined profile concept delivers smoother acceleration and a balanced combination of efficiency and control
- Aluminium Quickmount Base Plate - Allows the base plate to remain fixed to the board while the mast can be attached or removed quickly
- Maximum Compatibility - Fully compatible with previous Duotone Quickmount base plates and the current Duotone foil ecosystem
- 3BS / 3BS+ Connection - Uses the 3BS connection and supports the additional fourth 3BS+ screw supplied with the matching tail
